Manufacturer Part #
VUO52-22NO1

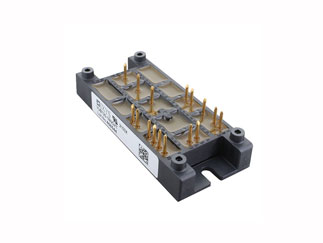

VUO52 Series 60 A 2200 V Chassis Mount Three Phase Bridge Rectifier
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse - IXYS | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:24 per Tray Mounting Method:Chassis Mount | ||||||||||
| Date Code: | 2448 | ||||||||||
Littelfuse - IXYS VUO52-22NO1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Change of delivery label formatThis is the updated Rev1 for E2, E3, V1 and V2 packages to reflect last updated label changes.Littelfuse would like to notify you about the change of delivery labels for the list of part numbers listed in [ANNEX 1 – list of affected part numbers], concerning Littelfuse products in E2/E3 package, ISOPLUS-SMPD package, ISOPLUS-DIL package, V1 and V2.An outsourced assembly house moving to SAP ERP is aligning its products labeling types with other existing LF assembly locations for smoother Operations & Supply chain management .
Littelfuse would like to notify you about the change of delivery labels for the list of part numbers listed in [ANNEX 1 - list of affected part numbers], concerning Littelfuse products in E2/E3 package, ISOPLUS-SMPD package, ISOPLUS-DIL package, V1-pack. An outsourced assembly house moving to SAP ERP is aligning its products labeling types with other existing LF assembly locations for smoother Operations & Supply chain management.
Subject: Inner box packing Label update for Medium Power modules Littelfuse would like to notify you about implementing inner packing box label change for its Medium Power Modules built in our different assembly locations. To harmonize the marking, we will remove Pb-Free marking which is not relevant to all our products portfolio and will only show up a "RoHS compliant" logo which is appropriate to all our power modules. There is no change to fit, form or function of the existing products as the change refers to packing box labelling only.Implementation date: May 1st, 2023 - already in place at some warehouse locations
SUBJECT: Assembled Device Marking Format Changes and Outer Box/Bag Label Format Changes - Change to the assembled device marking format The change affects the date code and tracking number identification. This change does not affect the form, fit or function of the product. See attached for more details - Change to the box label format: The paper sticker label found on the outer box or bag will see a format change that incorporates the Littelfuse logo along with the IXYS logo. The printed information remains the same (PN, Qty, Lot #, date code, country of origin). The change allows for a improved readability. This change does not affect the form, fit or function of the product. REMARKS: This changes from the original IXYS Corporation marking/labeling format to the new IXYS LLC-USA format is being done to conform to the SAP product management system requirements of our parent company Littelfuse Corporation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=VUO52-22NO1&field4=Littelfuse - IXYS&field18=https://p1na.futureelectronics.com/p/discretes--diodes--bridge-rectifiers/vuo52-22no1-ixys-3019543
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=VUO52-22NO1&field4=Littelfuse - IXYS&field18=https://p1na.futureelectronics.com/p/discretes--diodes--bridge-rectifiers/vuo52-22no1-ixys-3019543
Littelfuse - IXYS VUO52-22NO1 - Technical Attributes
| Average Rectified Current-Max: | 60A |
| Reverse Voltage-Max [Vrrm]: | 2200V |
| Peak Current-Max: | 380A |
| Reverse Current-Max: | 40µA |
| Forward Voltage: | 1.44V |
| Mounting Method: | Chassis Mount |
Features & Applications
The VUO52-22NO1 is a 55 A, 2200 V, three phase bridge rectifier.
Features and Benefits:
- Package with DCB ceramic base plate
- Isolation voltage 3000 V~
- Planar passivated chips
- Blocking voltage up to 2200 V
- Low forward voltage drop
- UL registered E 72873
- Easy to mount with one screw
- Space and weight savings
- Improved temperature & power cycling
Applications:
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Available Packaging
Package Qty:
24 per Tray
Mounting Method:
Chassis Mount
