Manufacturer Part #
APTGLQ80HR120CT3G

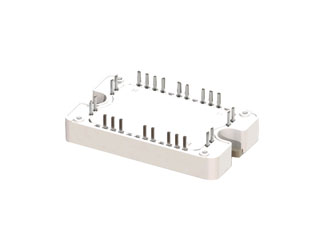

APTGLQ80x Series 1200 V 150 A Phase Leg & Dual Common Emitter Power Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Tube Package Style:SP-3 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip APTGLQ80HR120CT3G - Product Specification
Shipping Information:
ECCN:
PCN Information:
Revision History:January 17, 2023: Issued initial notification.August 04, 2023: Issued final notification. Attached the Qualification Report. Updated parts list to remove catalog part numbers APTGF50H60T3G, APTGF90H60T3G, CMTDGF50H603G, and CMTDGF90H603G based on the updated scope. Provided estimated first ship date to be on August 29, 2023.Description of Change:Qualification of MP3B as new assembly site for selected Microsemi APTxx, CMxx, and MSCxx device families available in SP3F package.Pre and Post Change Summary: See attachedImpacts to Data Sheet:NoneChange Impact:NoneReason for Change:To improve on time delivery performance by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated First Ship Date:August 29, 2023 (date code: 2335)Note: Please be advised that after the estimated first ship date customers may receive pre and post change parts.Time Table Summary: See attached
Description of Change:Qualification of MP3B as new assembly site for selected Microsemi APTxx, CMxx, and MSCxx device families available in SP3F package.Reason for Change:To improve on time delivery performance by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:May 2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APTGLQ80HR120CT3G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--igbts/aptglq80hr120ct3g-microsemi-5034603
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APTGLQ80HR120CT3G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--igbts/aptglq80hr120ct3g-microsemi-5034603
Microchip APTGLQ80HR120CT3G - Technical Attributes
| CE Voltage-Max: | 1200V |
| Collector Current @ 25C: | 150A |
| Power Dissipation-Tot: | 500W |
| Gate - Emitter Voltage: | ±20V |
| Pulsed Collector Current: | 320A |
| Collector - Emitter Saturation Voltage: | 2.05V |
| Turn-on Delay Time: | 30ns |
| Turn-off Delay Time: | 290ns |
| Qg Gate Charge: | 370C |
| Reverse Recovery Time-Max: | 300ns |
| Leakage Current: | 100µA |
| Input Capacitance: | 4600pF |
| Thermal Resistance: | 0.3°C/W |
| Operating Temp Range: | -40°C to +175°C |
| Package Style: | SP-3 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1 per Tube
Package Style:
SP-3
Mounting Method:
Through Hole
