Infineon Technologies | IKP15N60TXKSA1

Manufacturer Part #

IKP15N60TXKSA1

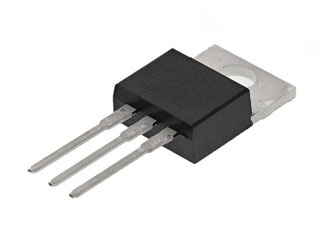

IKP15N60T Series 600 V 26 A Through Hole IGBT TrenchStop™ Series - PG-TO-220-3

ECAD Model:
Mfr. Name: Infineon Technologies
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Infineon Technologies IKP15N60TXKSA1 - Technical Attributes
Attributes Table
CE Voltage-Max: 600V
Collector Current @ 25C: 26A
Power Dissipation-Tot: 130W
Gate - Emitter Voltage: 20V
Pulsed Collector Current: 45A
Collector - Emitter Saturation Voltage: 1.5V
Turn-on Delay Time: 17ns
Turn-off Delay Time: 188ns
Qg Gate Charge: 87nC
Reverse Recovery Time-Max: 34ns
Leakage Current: 100nA
Input Capacitance: 860pF
Operating Temp Range: -40°C to +175°C
No of Terminals: 3
Package Style:  TO-220-3 (TO-220AB)
Mounting Method: Through Hole
Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
200
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
500
Multiple Of:
50
Total
$430.00
USD
Quantity
Unit Price
25
$0.905
100
$0.88
300
$0.86
1,000
$0.84
3,000+
$0.80
