Manufacturer Part #
02183.15VXP

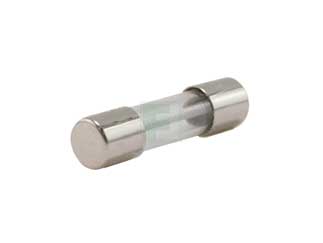

Cartridge Fuses 250V 5X20mm (P) 3.15AMP
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5 per Bulk Mounting Method:Clip | ||||||||||
| Date Code: | 2444 | ||||||||||
Product Specification Section
Littelfuse 02183.15VXP - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Labeling Change
12/09/2022 Details and Download
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
PCN UPDATE
12/06/2022 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=02183.15VXP&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/02183-15vxp-littelfuse-3191310
Littelfuse 02183.15VXP - Technical Attributes
Attributes Table
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Time Lag |
| Current Rating: | 3.15A |
| Resistance: | 847.5Ω |
| Interrupting Rating: | 35A |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 1.11 |
| Dimension: | L 20mm x D 5.2mm |
| Mounting Method: | Clip |
Pricing Section
Global Stock:
10
Singapore:
10
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
5
$3.05
25
$2.99
125
$2.93
250
$2.91
750+
$2.83
Product Variant Information section
Available Packaging
Package Qty:
5 per Bulk
Mounting Method:
Clip
