Manufacturer Part #
1-1393212-4

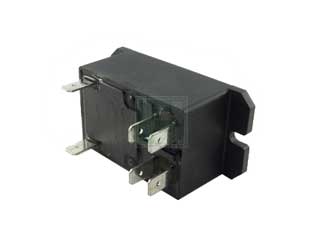

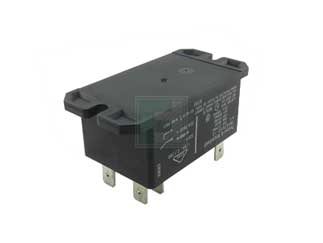

T92 Series 30 A DPST 12 VDC Panel Mount General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:120 per Tray Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-1393212-4 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1393212-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1-1393212-4-te-connectivity-4281192
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1393212-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1-1393212-4-te-connectivity-4281192
TE Connectivity 1-1393212-4 - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | DPST (2 Form A) |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 30A |
| Coil Resistance: | 86Ω |
| Switching Voltage: | 277V |
| Rated Power: | 1700mW |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Operating Temp Range: | 70°C to 85°C |
| Insulation Resistance: | 1000MΩ |
| Height - Max: | 30.7mm |
| Termination Style: | Quick Connect |
| No of Terminals: | 8 |
| Mounting Method: | Panel Mount |
Features & Applications
The 1-1393212-4 is apart of T92 Series 30 A DPST (2 Form A) 12 VDC Flange Mount General Purpose Power Relay.
Features:
- Contact - Rated Current (A) = 30
- Coil Resistance (?) = 86
- Actuating System = DC
- Coil - Rated Power (W) = 1.70
- Input Voltage (VDC) = 12
- Relay Type = Power PCB/Panel Mount Relay
- Mounting Options = Flange Mount
- Enclosure Type = Sealed
- Contact Base Material = Silver Cadmium Oxide
- Terminal Assignment = 2 Form A
- Relay Style = PCB
- Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
- Coil - Magnetic System = Monostable
- Coil Suppression Diode = Without
- Coil Selection Criteria = Nominal Voltage
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
23 Weeks
Quantity
Unit Price
30+
$14.42
Product Variant Information section
Available Packaging
Package Qty:
120 per Tray
Mounting Method:
Panel Mount
