Manufacturer Part #
AEP19024

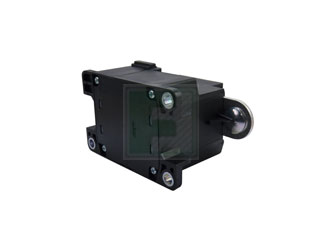

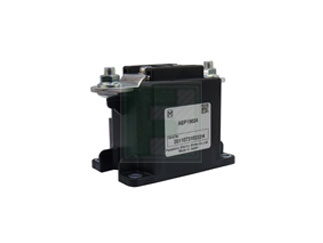

AEP Series 300 A SPST 24 VDC Compact High Voltage / Current Cut-Off Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | |||||||||||
Panasonic Industry AEP19024 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Discontinuation details:We are reaching out to inform you of the discontinuation of specific Panasonic Industry part numbers. We will do our best to accommodate all last-time buys for these parts, but due to limited availability, we may be unable to fulfill every request. However, if we have recommended alternatives, please refer to the attached documents or contact Panasonic directly for more information. Last Time Buy Date: 03/15/2025Last Eligible Ship Date: 06/15/2025
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AEP19024&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/aep19024-panasonic-8940058
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AEP19024&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/aep19024-panasonic-8940058
Panasonic Industry AEP19024 - Technical Attributes
| Contact Form: | SPST (1 Form A) |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 300A |
| Termination Style: | Screw |
Features & Applications
Panasonic Electric Works of America (formerly Aromat) is a leader in the relay market. The EP series is a high voltage and current cut-off capacity in a compact package. There is a Wide selection of models available, inluding PC board type , TM type (10A), screw terminal type (60A), and connector type (80A and 300A).
Avaialble Contact Arrangements:
AEP1: 1 Form A
AEP3: 1 Form A PC board type (10A type only)
AEP5: 1 Form A TM type (10A type only)
Available Contact Ratings:
1: 10A
6: 60A
8: 80A
9: 300A
TYPICAL APPLICATIONS
• Cogeneration systems
• Construction machinery
• AGV (Automatic guided vehicle) (Unmanned transport carts)
• Battery inspection and testing equipment (charge and discharge control)
• Inverter control
• Solar power generation systems
• Welding equipment
• Elevator
Available Packaging
Package Qty:
1 per Box
