Manufacturer Part #
AQZ202G

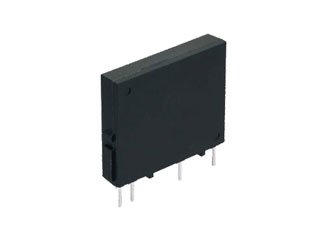

AQZ Series 6 A 60 V SPST Through Hole PhotoMOS High Capacity Relay - SIL-4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:25 per Box Package Style:SIP-4 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic AQZ202G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Marking Change
01/26/2022 Details and Download
Marking Change
11/23/2021 Details and Download
Please be advised that various PhotoMOS�, Photovoltaic MOSFET Driver, Phototriac Coupler and Solid State Relay Series has a brand mark, marking and safety standard changes per the diagrams in this notice.. Change Details:1. Brand mark change. 2. Product Body marking change. 3. Safety standard change ( UL / C-UL --> UL ) 4. Safety standard change ( BSI -> VDE ) 5. Safety standard change ( UL / C-UL --> UL )
Part Status:
Active
Active
Panasonic AQZ202G - Technical Attributes
Attributes Table
| Contact Form: | SPST (1 Form A) |
| No of Channels: | 1 |
| Output Voltage: | 0V to 60V |
| On-state Resistance-Max: | 0.03Ω |
| Contact Current-Max: | 6A |
| Isolation Voltage-RMS: | 2500V |
| Capacitance: | 0.8pF |
| Turn-on Delay Time: | 3.8ms |
| Turn-off Delay Time: | 0.2ms |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SIP-4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Web Price
25+
$11.93
Product Variant Information section
Available Packaging
Package Qty:
25 per Box
Package Style:
SIP-4
Mounting Method:
Through Hole
