TE Connectivity | 1-5145154-2

Manufacturer Part #

1-5145154-2

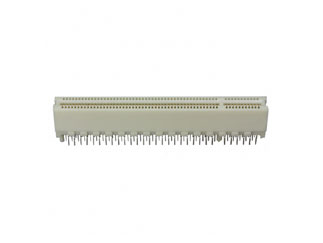

120 Position 1.27 mm Through Hole Receptacle CardEdge Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2113
Product Specification Section
TE Connectivity 1-5145154-2 - Technical Attributes
Attributes Table
Style/Orientation: Receptacle
No of Positions: 120
Pitch: 1.27 mm
Termination: Solder
Mounting Method: Through Hole
Features & Applications

The 1-5145154-2 is a 1.27 mm 120 position receptacle through hole cardEdge connector.

Features:

  • PCB Mounting Orientation = Vertical
  • Number of Dual Positions = 60
  • PCB Mount Style = Through Hole
  • Solder Tail Contact Plating = Tin over Nickel
  • Family Name = PCI
  • Contact Plating, Mating Area, Material = Gold (15)
  • Contact Base Material = Phosphor Bronze
  • Housing Color = White
  • Housing Material = Thermoplastic - GF
  • RoHS/ELV Compliance = RoHS compliant, ELV compliant





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
8 Weeks
Minimum Order:
210
Multiple Of:
35
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,136.10
USD
Quantity
Unit Price
35+
$5.41
