Manufacturer Part #

341-020-520-201

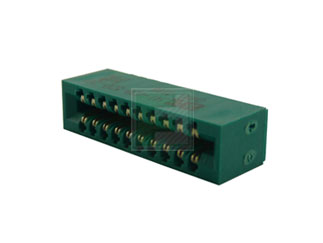

341 Series Board to Board Receptacle 0.100 in Through Hole Card Edge Connector

Mfr. Name: EDAC
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Type: Board to Board (Card Edge)
Style/Orientation: Receptacle
No of Positions: 20
Pitch: 0.1 in
Termination: Solder Pins/Tails
Mounting Method: Through Hole
Features & Applications

The 341-020-520-201 is a part of 341 Series 20 Position Dual Row 2.54 mm Pitch Female Dual Edge Card Edge Connectors

Features:

  • UL recognized
  • .100 (2.54) contact spacing x .140 (3.56) row spacing
  • Accepts .062 (1.57) nominal thickness P.C. board
  • Low profile insulator body, .437 (11.10)
  • Contact termination options include P.C. tail, wire hole, & extender board bends
  • Single or dual row configurations
  • Variety of mounting options
  • Accepts between contact and in-contact polarizing keys

Specifications:

  • Insulator Material: thermoplastic polyester, UL 94V-0
  • Contact Material: copper, nickel, tin alloy, CA-725
  • Contact Plating: gold on the mating area, tin on the contact tails, nickel underplate
  • Current Rating: 3 amperes continuous
  • Contact Resistance: 10 milliohms maximum
  • Dielectric Withstanding Voltage: 1200 V AC rms @ sea level between adjacent contacts
  • Insulation Resistance: 5000 megohms minimum
  • Operating Temperature: -65 to +105 degrees C
  • Insertion Force: 16 oz (4.45 N)
  • Withdrawal Force: 1 oz (0.28 N)

Applications:

  • Instrunmention
  • Industrial
  • Automotive
Pricing Section
Stock:
0
Minimum Order:
200
Multiple Of:
25
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Total
$1,394.00
USD
Quantity
Web Price
25
$8.37
50
$7.22
100
$7.03
125
$6.97
375+
$6.69
