Manufacturer Part #
5650951-5

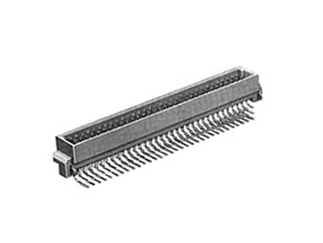

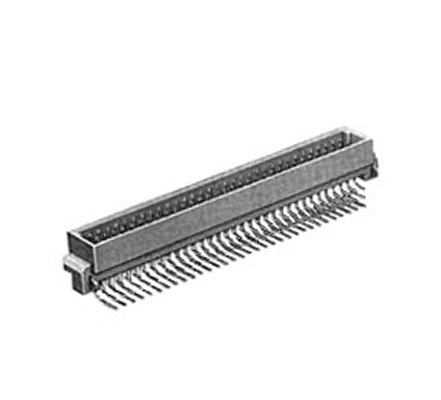

Type C 64 Position 2.54 mm Plug Right Angle Through Hole Eurocard Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:150 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5650951-5 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes: We plan to outsource TE existing assembly lines (i.e. transfer existing assembly lines to TE s suppliers). Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5650951-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/5650951-5-te-connectivity-7186299
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5650951-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--backpanel-connectors/5650951-5-te-connectivity-7186299
TE Connectivity 5650951-5 - Technical Attributes
| Type: | Board to Board (Card Edge) |
| Style/Orientation: | Right Angle Header/Plug |
| No of Positions: | 64 |
| No of Rows: | 3 |
| Pitch: | 2.54 mm |
| Termination: | Solder |
| Material: | Liquid Crystal Polymer |
| Contact Plating: | Tin |
| Operating Temp Range: | -55°C to +125°C |
| Color: | Grey |
| Mounting Method: | Through Hole |
Features & Applications
The 5650951-5 is a64 Position Plug Right Angle Through Hole Eurocard Type C Connector having termination post length of (mm [in]) = 3.30 [0.130].
Features:
- Connector Type = Connector Assembly
- PCB Mount Retention = With
- PCB Mounting Orientation = Right Angle
- Solder Tail Contact Plating = Tin
- Type = Type C
- Contact Type = Pin
- Contact Base Material = Copper Alloy
- Contact Plating, Mating Area, Material = DIN 41612 Class 2
- Connector Style = Plug
- Housing Material = Polymer
- UL Flammability Rating = UL 94V-0
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
150 per Tray
Mounting Method:
Through Hole
