Référence fabricant
1-1586043-2

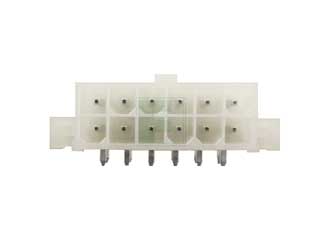

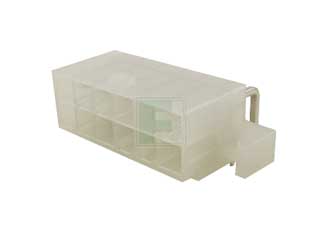

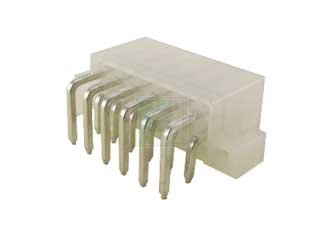

VAL-U-LOK 12 Pos Dual Row 0.165 inch Right Angle Wire to Board Shrouded Header
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :1100 par Tray Méthode de montage :PCB Mount | ||||||||||
| Code de date: | |||||||||||
TE Connectivity 1-1586043-2 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1-1586043-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/1-1586043-2-te-connectivity-7830599
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1-1586043-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/1-1586043-2-te-connectivity-7830599
TE Connectivity 1-1586043-2 - Caractéristiques techniques
| No of Positions: | 12 |
| Pitch: | 4.2 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Wire to Board |
| Mating Type: | Latch Lock |
| Color: | Natural |
| Méthode de montage : | PCB Mount |
Fonctionnalités et applications
TE Connectivity (TE) has introduced an extension to its VAL-U-LOK connector product line, adding new parts which offer a higher 13A maximum current capability on a 4.2mm centerline spacing. Earlier VAL-U-LOK connectors have a 9A rating.
APPLICATIONS
• Household appliances
• Industrial machinery
• Automotive systems
• Medical devices
• Vending machines
• Gaming equipment
• HVAC equipment
• Indoor and outdoor lighting
• Security systems
• Storage and networking systems
FEATURES
• Vertical and right-angle pin headers available
• Contacts available in strip form or loose pieces
• UL recognized
• CSA certified
Emballages disponibles
Qté d'emballage(s) :
1100 par Tray
Méthode de montage :
PCB Mount
