Manufacturer Part #
3-641208-2
2 Position Board to Cable/Wire Through Hole 3.96 mm Pitch Connector Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 3-641208-2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change:The drawing will be updated to clarify plating specification note details. The revised note will indicate that full plating thickness is applied only in the functional contact area of the pin, while the remaining non-functional areas will have optimized plating thickness with gold flash. The change does not impact product functionality or its appearance.Reason for Change:This update supports ongoing sustainability efforts by optimizing material usage. It also ensures alignment between production practices and documentation for improved clarity with no impact on product functionality or its appearance.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-641208-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/3-641208-2-te-connectivity-1770445
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-641208-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/3-641208-2-te-connectivity-1770445
TE Connectivity 3-641208-2 - Technical Attributes
| No of Positions: | 2 |
| Pitch: | 3.96 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 7A |
| Contact Plating: | Gold |
| Material: | Polyester |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Wire to Board |
| Mating Type: | Friction Lock |
| Color: | Natural |
| Mounting Method: | Through Hole |
Features & Applications

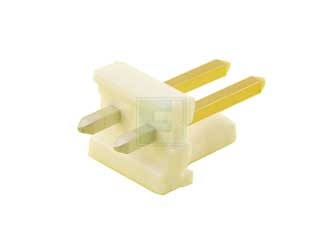

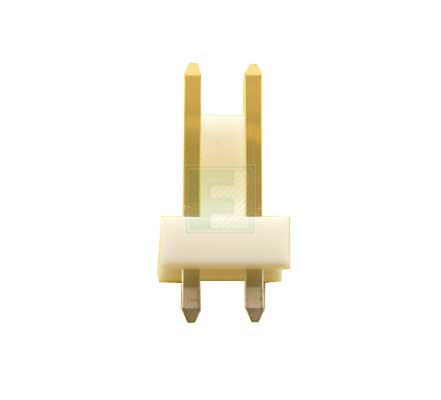

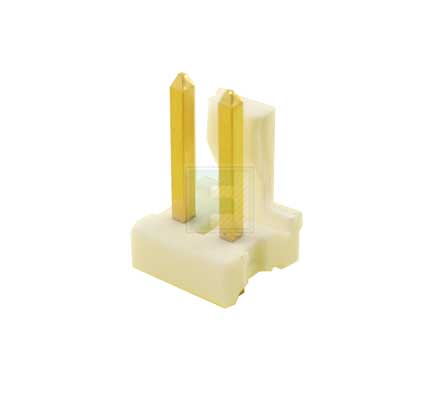

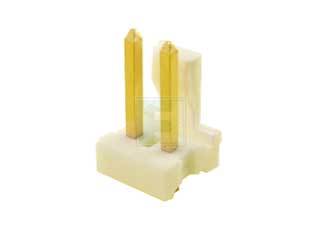

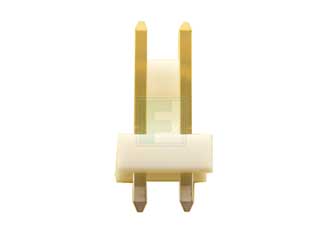

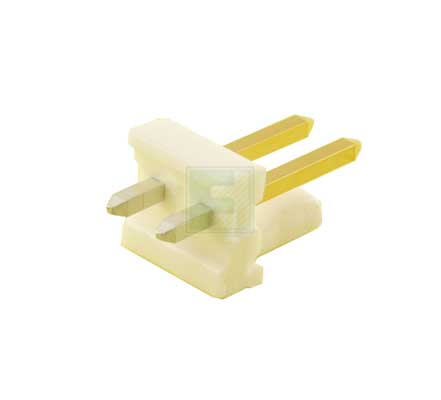

The 3-641208-2 is a MTA-156 2 Position Through-Hole Single Row Straight Wire to Board Header .
Product Features:
- Connector
- MTA-156 Product Line
- Header
- Connector Style = Plug
- Contact Type = Pin
- Number of Positions are 2
- Centreline is 3.96 mm [0.156 in]
- Applies to Printed circuit Board
- Wire-to-Board Application Use
View the MTA-156 series of Headers
Available Packaging
Package Qty:
2500 per Bag
Mounting Method:
Through Hole
