Manufacturer Part #

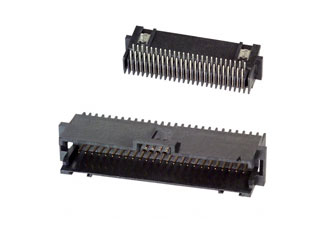

50 Position 2.54 mm Pitch Dual Row Right Angle Shrouded Header Connector
|Mfr. Name:||TE Connectivity|
Description of Changes:To provide flexibility to our manufacturing processes, we are allowing the manufacturing plants, when possible, to utilize regrind resin, up to the allowable limit specified on the UL Yellow Card, in the molding process. Reason for Changes: Product improvement.There is no change to parts or drawings, therefore there is no revision level change. This is an option of when enough regrind is obtained, Manufacturing can add it to the production. The material is the same formulation as currently used.
Changing the contact retention force in the housing from an axial load of 2 pounds, to an axial load of 1 pound. Document clarification. The System 50 product was created in 1989. The product was qualified to the previous 108-1093 Product Specification which had the force as 2 pounds. Around 1995, the contact design was changed from a latch style retention to an interference fit style retention. The retention of this new style is slightly lower than the latch style for obvious reasons. However when this design change was made, the Product specification was not updated for the newer Contact retention value.
|No of Positions:||50|
|Style/Orientation:||Right Angle Header/Plug|
|Operating Temp Range:||-65°C to +105°C|
|No of Rows:||2|
|Mating Type:||Detent Latch|
|Mounting Method:||Through Hole|
