TE Connectivity | 6-104068-7

Manufacturer Part #

6-104068-7

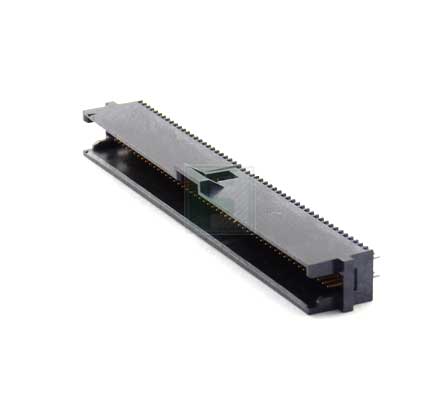

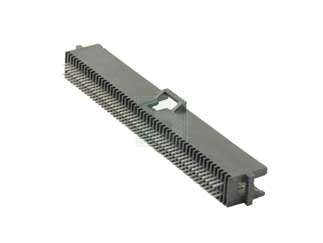

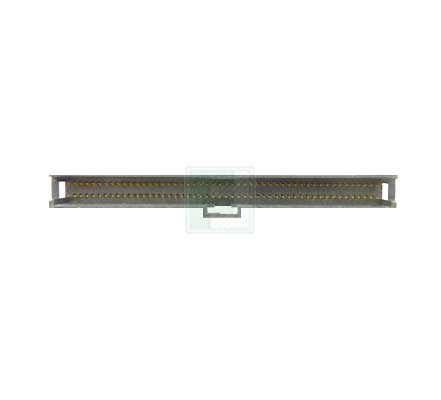

AMPMODU 100 Position Through-Hole Dual Row Vertical 0.05 inch Shrouded Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 6-104068-7 - Technical Attributes
Attributes Table
No of Positions: 100
Pitch: 1.27 mm
Style/Orientation: Vertical Header/Plug
Termination: Solder
Type: Shrouded Header
Mounting Method: Through Hole
Features & Applications

The 6-104068-7 is a part of 6-104068 series AMPMODU 100 position through hole dual row straight .050 x .100 Shrouded Header.It has an operating temperature ranging from - 65°C to 105°C.

Features:

  • Product Type Features:
    • Connector Type = Header
    • Shrouded = Yes
    • Mount Angle = Vertical
    • PCB Mount Style = Through Hole
    • PCB Mount Retention = Without
  • Electrical Characteristics:
    • Voltage (VAC): 30
    • Insulation Resistance (M?): 5,000
    • Dielectric Withstanding Voltage (V): 500
  • Termination Features:
    • Termination Post Length (mm [in]): 2.54 [0.100]
    • Solder Tail Contact Plating: Tin over Nickel
  • Body Features:
    • Number of Positions: 100
    • Number of Rows: Dual
  • Contact Features:
    • Contact Base Material: Phosphor Bronze
    • Contact Plating, Mating Area, Material: Gold (30)
  • Housing Features:
    • Connector Style: Plug
    • Housing Material: Thermoplastic - GF
    • UL Flammability Rating: UL 94V-0
    • Housing Color: Black

View the complete 6-104068 series of PCB Interconnect

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
28 Weeks
Minimum Order:
7
Multiple Of:
7
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$206.29
USD
Quantity
Unit Price
7
$29.47
14
$29.26
21
$29.14
35
$28.98
70+
$28.65
Product Variant Information section
