Manufacturer Part #

PH1-40-UA

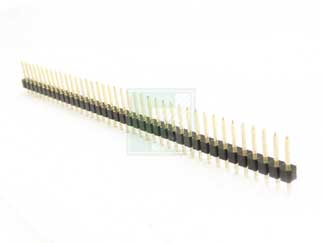

PH Series 40 Position 2.54 mm Single Row Through Hole Straight Pin Header

PH1-40-UA Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Adam Tech
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 200 per Bag Mounting Method: Through Hole
Date Code:	2438

Adam Tech PH1-40-UA - Technical Attributes

No of Positions:	40
Pitch:	2.54 mm
Style/Orientation:	Straight Header/Plug
Operating Temp Range:	-40°C to +105°C
Voltage Rating:	250V
Current Rating:	3A
Contact Plating:	Gold
Material:	Polybutylene Terephthalate
No of Rows:	1
Type:	Pin Headers
Color:	Black
Insulation Resistance:	5000MΩ
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

The PH Series from Adam Tech is a family of .100" centerline Pin Headers. This series offers a full range of headers in a variety of configurations. Adam Tech offers a choice of single, dual, and three rows, either Straight or Right Angle in thru hole or Surface mount mountings.The posts have a close tolerance of 0.025" sq which are smoothly finished and taper tipped to eliminate insertion damage to the PCB or mating connector. Adam Tech Pin Headers can be easily cut down into exact sizes as required.

PH1-40-UA is a 40 position Single Row Straight form, .100" Header. This device is gold flash plated has a mating length of .235", and has a Solder tail length of .120".
