Référence fabricant
3-640426-5

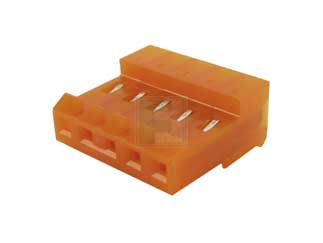

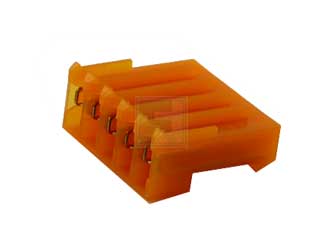

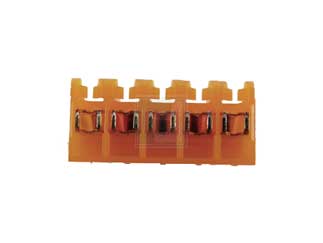

MTA-156 5 Position Single Row 3.96 mm Pitch 18 AWG Closed End IDC Socket
|
|
|||||||||||
|
|
|||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: |
Product Variant Information section
Emballages disponiblesQté d'emballage(s) :1000 par Bag Méthode de montage :Panel Mount |
||||||||||
| Code de date: | |||||||||||
TE Connectivity 3-640426-5 - Spécifications du produit
Informations de livraison:
Code HTS:
ECCN:
Informations PCN:
General Product Description:MTA156, Receptacle assembly, 18 AWGDescription of ChangesStandardization of MTA Receptacle Housing colorant s. Customer s may see slight color variation on the Receptacle housings. This change is visual only and will not impact product performanceReason for Changes:Manufacturing / Process improvement to streamline colorant usage on MTA Receptacle Housing s.First Ship Date of Changed Items (Changed Parts Only): 03-MAY-2023
General Product Description:MTA100 and MTA156 Connector assembly (Receptacles)Description of ChangesThe listed part numbers will be transferred from TE Connectivity China to TE Connectivity USA location. An internal release based on TE Connectivity specifications will be executed before any parts will be delivered, which guarantees the performanceReason for Changes:Manufacturing location changeFirst Ship Date of Changed Items (Changed Parts Only):01-FEB-2023
Statut du produit:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=3-640426-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-pcb--socket-plug-wire-mount/3-640426-5-te-connectivity-3594587
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=3-640426-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-pcb--socket-plug-wire-mount/3-640426-5-te-connectivity-3594587
TE Connectivity 3-640426-5 - Caractéristiques techniques
| Type: | Wire to Board |
| No of Positions: | 5 |
| Pitch: | 3.96 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | IDC |
| Méthode de montage : | Panel Mount |
Fonctionnalités et applications
Features:
- Connector Type = Connector Assembly
- Wire Size (mm² [AWG]) = 0.8-0.9² [18]
- Mating Connector Lock Type = Locking Ramp
- Current Rating (A) = 7
- Voltage Rating (VAC) = 600
- Solder Tail Contact Plating = Tin
- Centerline (mm [in]) = 3.96 [0.156]
- Cable Exit Angle = 90°
- Contact Type = Socket
- Contact Plating, Mating Area, Material = Tin
- Contact Base Material = Copper Alloy
- Connector Style = Receptacle
- UL Flammability Rating = UL 94V-2
- Housing Color = Orange
- Application Use = Wire-to-Board
- Applies To = Wire/Cable
Mating Products:
- 640383-5
- 640384-5
- 640385-5
- 640388-5
Emballages disponibles
Qté d'emballage(s) :
1000 par Bag
Méthode de montage :
Panel Mount
