Manufacturer Part #
3-520125-2

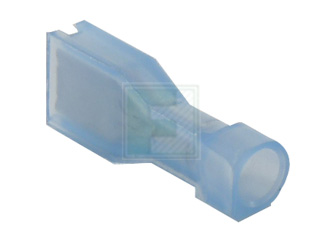

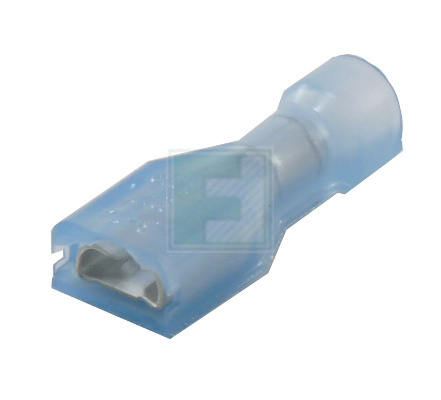

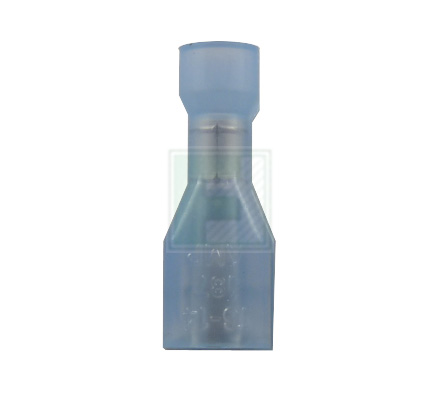

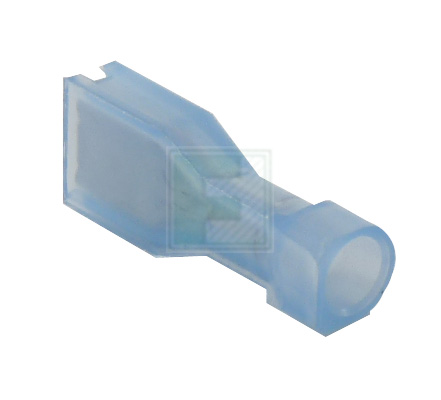

Ultra Fast 16-14 AWG Straight Fully Insulated Receptacle Assembly
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Bag Mounting Method:Cable Mount |
||||||||||
| Date Code: | 2438 | ||||||||||
TE Connectivity 3-520125-2 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
General Product Description:Crimped FASTON terminalsDescription of ChangesAdd "Boiler Plate" statement clarifying voltage rating to 114 specifications. Terminal Voltage Rating: No rated voltage for the FASTON terminal itself, after FASTON terminal is crimped with wire, the assembly would have a rated voltage. For example, the lead assembly is rated at 600 volts per our UL 310 testing when crimped on UL 1015 wire. Even higher voltage ratings are acceptable under the correct conditions. Voltage rating is based upon dielectric strength between the terminal and other potential conductors at a different voltage. For uninsulated terminals, voltage rating is based upon the wire insulation rating and the application spacings. For insulated terminals, voltage rating is determined by housing dielectric strength, spacings, and wire insulation rating.Reason for Changes:Clarification to answer repeated customer questions.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-520125-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--crimp-terminals/3-520125-2-te-connectivity-5375290
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-520125-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--crimp-terminals/3-520125-2-te-connectivity-5375290
TE Connectivity 3-520125-2 - Technical Attributes
| Size: | Tab 0.187" x 0.032" |
| Style: | Fully Insulated |
| Type: | Receptacle |
| Wire Gauge: | AWG 16-14 |
| Color: | Blue |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Gender: | Female |
| Operating Temp Range: | -40°C to +110°C |
| Voltage Rating: | 600V |
| Mounting Method: | Cable Mount |
Features & Applications
The FASTON Ultra-Fast (187) Series is a AWG 16-14 Fully Insulated Straight Receptacle
The Ultra-Fast Fully Insulated FASTON Receptacle and Tab offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel “F” crimp FASTON Terminals. The “User-Friendly” design combines easy mating with rounded corners.
Features:
- Terminal Type = Receptacle
- Proprietary Name = Ultra-Fast
- Receptacle Style = Straight
- Mating Area Interface Dimensions (mm [in]) = 4.75 x 0.81 [.187 x .032]
- Material = Brass
- Insulation Diameter (mm [in]) = 4.06 [.160] Max. Insulation Support = Non-Insulation Support
- Finish = Tin
Available Packaging
Package Qty:
1 per Bag
Mounting Method:
Cable Mount
