Manufacturer Part #

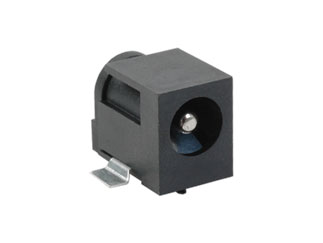

PJ-036BH-SMT-TR
Single Port 2 Conductors 3 Contacts 24 VDC 5 A Right Angle SMT Male Power Jack
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Same Sky - CUI Devices | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:350 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Same Sky - CUI Devices PJ-036BH-SMT-TR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=PJ-036BH-SMT-TR&field4=Same Sky - CUI Devices&field18=https://p1apac.futureelectronics.com/p/interconnect--power-connectors--dc-power-jacks/pj-036bh-smt-tr-same-sky-cui-devices-2031083
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=PJ-036BH-SMT-TR&field4=Same Sky - CUI Devices&field18=https://p1apac.futureelectronics.com/p/interconnect--power-connectors--dc-power-jacks/pj-036bh-smt-tr-same-sky-cui-devices-2031083
Same Sky - CUI Devices PJ-036BH-SMT-TR - Technical Attributes
Attributes Table
| Type: | Receptacle |
| Gender: | Male |
| No of Positions: | 2 |
| Rated Voltage: | 24V |
| Rated Current: | 5A |
| Style/Orientation: | Horizontal |
| Insulation Resistance: | 100MΩ |
| Contact Resistance: | 50mΩ |
| Material: | Polyamide / Nylon |
| Termination: | Solder |
| Color: | Black |
| Operating Temp Range: | -25°C to +85°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
350
$0.70
700
$0.69
1,050
$0.68
1,750+
$0.665
Product Variant Information section
Available Packaging
Package Qty:
350 per Reel
Mounting Method:
Surface Mount
