Manufacturer Part #
STPS2H100

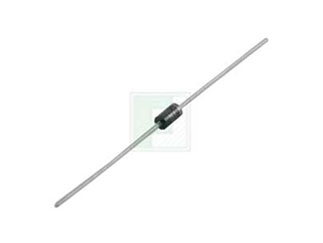

STPS2H Series Single 75 A 100 V Through Hole Schottky Rectifier - DO-41
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Ammo Pack Package Style:DO-41 (DO-204AL) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics STPS2H100 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=STPS2H100&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/stps2h100-stmicroelectronics-3165717
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=STPS2H100&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--diodes--scottky-rectifiers/stps2h100-stmicroelectronics-3165717
STMicroelectronics STPS2H100 - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 2A |
| Peak Current-Max: | 75A |
| Reverse Voltage-Max [Vrrm]: | 100V |
| Reverse Current-Max: | 1µA |
| Forward Voltage: | 0.88V |
| Configuration: | Single |
| Operating Temp Range: | -65°C to +175°C |
| Storage Temperature Range: | -65°C to +175°C |
| Package Style: | DO-41 (DO-204AL) |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
2,000
$0.0591
6,000
$0.0576
10,000
$0.0569
30,000
$0.0555
50,000+
$0.0542
Product Variant Information section
Available Packaging
Package Qty:
2000 per Ammo Pack
Package Style:
DO-41 (DO-204AL)
Mounting Method:
Through Hole
