Manufacturer Part #
ATM0700D6C
7"Display RGB 800x480 1050 Nits TFT LCD Panel
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | AZ Displays | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Box Mounting Method:Panel Mount |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
AZ Displays ATM0700D6C - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
N/A
HTS Code:
N/A
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ATM0700D6C&field4=AZ Displays&field18=https://p1na.futureelectronics.com/p/semiconductors--lcd-display-solutions--displays--active-matrix-tft-displays/atm0700d6c-az-displays-9013085
-
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ATM0700D6C&field4=AZ Displays&field18=https://p1na.futureelectronics.com/p/semiconductors--lcd-display-solutions--displays--active-matrix-tft-displays/atm0700d6c-az-displays-9013085
AZ Displays ATM0700D6C - Technical Attributes
Attributes Table
| Diagonal Size: | 7in |
| Resolution: | 800 × 480 |
| Display Mode: | Transmissive |
| Viewing Angle: | 70° |
| Operating Temp Range: | -20°C to +70°C |
| Contrast Ratio: | 500 |
| Interface Type: | Digital RGB |
| Response Time: | 20ms |
| Mounting Method: | Panel Mount |
Features & Applications

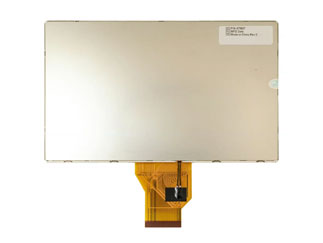

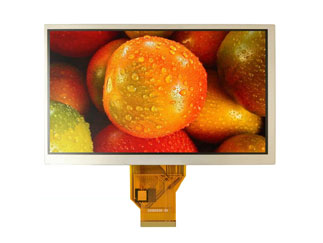

The ATM0700D6C is a 7 inch RGB-Stripe (800 x 480) LED Transmissive Digital Landscape TFT Module.
Features:
- 800 x RGB x 480
- Wide VGA Resolution
- LED Backlight with 1000 Nits Brightness
- Digital RGB interface
- RoHS Compliant
- Also available in 250 and 500 nits in the same footprint
Specifications:
- Outline Dimension: 164.9 x 100.0 x 5.7 mm
- Active Area: 154.08 x 85.92 mm
- Interface: Digital RGB
- Contrast: 500:1
- Brightness: 1000 nits
- Viewing Angle: (LR, UD): +70/-70 +70/-50
- Viewing Direction: 12 O'clock
- Operation Temperature: -20 ~ +70
- Storage Temperature: -30 ~ +80
- Bonding Type: COG
