Amphenol Sine Systems — ecomate® Circular Multiway Connectors



Amphenol Sine Systems

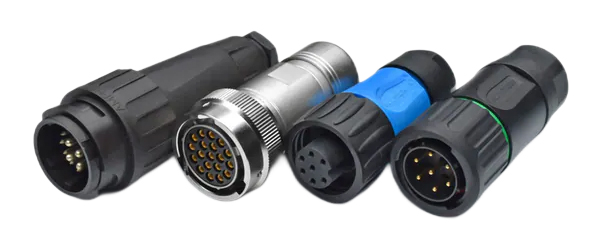

Amphenol Sine Systems ecomate® Circular Multiway Connectors

Reliable, high-performance connectors built for demanding industrial and outdoor environments

The ecomate® Family of circular, multiway connectors delivers exceptional durability, safety, and versatility for power and signal applications. Designed with robust plastic or metal housings, these connectors feature multiple coupling options including circular bayonet, quick-locking automatic, and rapid coupling systems for secure and efficient connections.

With IP65 through IP69K protection in mated condition, the ecomate® connectors withstand harsh conditions while supporting amperage ranges up to 300A and voltages up to 1000V, making them an ideal solution for industries requiring reliable connectivity in challenging environments.

Featured Series

Amphenol Sine Systems ecomate® Plastic Series

ecomate® Plastic Series

Key Features:

  • IP Rating: IP65 and IP67 Rated (in mated condition)
  • Size/Insert Arrangements: 1 Shell Size/4 Insert Arrangements
  • Unique Feature: Circular, Thermoplastic
  • Max Amp/Volt: Up to 22A @ 40°C/600V
  • Op Temp: -40°C to +125°C
  • Coupling System: Rapid Threading
  • Housing Body: Thermoplastic, UL 94-V0
  • Contact Types: Machined, Stamped & Formed, PCB
  • Wire AWG Range: 26 – 14AWG (0.14 – 2.5mm²)
  • Contact Termination: Screw (Field Install), Crimp, Solder
  • Sealing Material: Neoprene
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL94-VO
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: ≥ 10⁸ Ω
  • Approvals: VDE, SEV, UL, CSA
  • RohS Compliant: Yes

Amphenol Sine Systems ecomate® Aquarius™ Series

ecomate® Aquarius™ Series

Key Features:

  • IP Rating: IP67 and IP69K Rated (in mated condition)
  • Size/Insert Arrangements: 6 Shell Sizes/ Numerous Insert Arrangements
  • Unique Feature: Mixed Power and Signal Layouts
  • Max Amp/Volt: Up to 65A/1000V
  • Op Temp: -40°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: Thermoplastic, UL94-VO
  • Contact Types: Machined, Stamped & Formed, PCB
  • Wire AWG Range: 30 - 8AWG (0.05 - 10.0 mm²)
  • Contact Termination: Crimp, Solder
  • Sealing Material: NBR/Silicone Rubber
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL94-VO
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: 5000 MΩ
  • Approvals: UL ECBT2

Amphenol Sine Systems ecomate® Aquarius™ PCB Mount Series

ecomate® Aquarius™ PCB Mount Series

Key Features:

  • IP Rating: IP67 and IP69K Rated (in mated condition)
  • Size/Insert Arrangements: 6 Shell Sizes/ Numerous Insert Arrangements
  • Unique Feature: PCB Mounted Jam Nut Receptacles
  • Max Amp/Volt: Up to 13A/600V
  • Op Temp: -40°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: Thermoplastic, UL94-VO
  • Contact Types: Machined PCB
  • Wire AWG Range: 20 - 12AWG (0.5 – 2.5 mm²)
  • Contact Termination: Crimp, Solder
  • Sealing Material: NBR/Silicone Rubber
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL94-VO
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: 5000 MΩ
  • Approvals: UL ECBT2
  • RohS Compliant: Yes

Amphenol Sine Systems ecomate® Aquarius™ Fathom Lock Series

ecomate® Aquarius™ Fathom Lock Series

Key Features:

  • IP Rating: IP68 and IP69K Rated (in mated condition)
  • Size/Insert Arrangements: 3 Shell Sizes/ Numerous Insert Arrangements
  • Unique Feature: Auto-Locking, Fathom Lock
  • Max Amp/Volt: Up to 45A/600V
  • Op Temp: -40°C to +125°C
  • Coupling System: Auto-Locking
  • Housing Body: Thermoplastic, UL94-VO
  • Contact Types: Machined, Stamped & Formed, PCB
  • Wire AWG Range: 30 - 8AWG (0.05 – 10.0 mm²)
  • Contact Termination: Crimp, Solder
  • Sealing Material: NBR/Silicone Rubber
  • Mating Cycles: >500
  • Shielding: None
  • Flammability Rating: UL94-VO
  • Fluid Resistance: Gas, oil, mineral oil, acid bath, basic bath
  • Insulation Resistance: 5000 MΩ
  • Approvals: UL ECBT2
  • RohS Compliant: Yes

Amphenol Sine Systems ecomate® RM (Rugged Metal) Series

ecomate® RM (Rugged Metal) Series

Key Features:

  • IP Rating: IP67 Rated (in mated condition)
  • Size/Insert Arrangements: Standard MIL-DTL-26482 Shell Sizes
  • Unique Feature: Rugged Metal Construction
  • Max Amp/Volt: Up to 45A/600V
  • Op Temp: -55°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: High-Grade Metal
  • Contact Types: Machined, Stamped & Formed
  • Wire AWG Range: 24 - 12AWG
  • Contact Termination: Crimp, Solder, PCB
  • Sealing Material: Silicone Rubber
  • Mating Cycles: >500
  • Shielding: Yes (Full 360° EMI/RFI Shielding)
  • Flammability Rating: UL94-VO
  • Approvals: UL, CSA
  • RohS Compliant: Yes

Amphenol Sine Systems ecomate® RM High Amperage Series

ecomate® RM High Amperage Series

Key Features:

  • IP Rating: IP67 Rated (in mated condition)
  • Size/Insert Arrangements: High Power 1 and 3 Pole Arrangements
  • Unique Feature: RADSOK® Contact Technology
  • Max Amp/Volt: Up to 300A and 630V
  • Op Temp: -55°C to +125°C
  • Coupling System: Circular Bayonet
  • Housing Body: High-Grade Metal
  • Contact Types: RADSOK® High Amperage Contacts
  • Contact Termination: Crimp, Lug, Busbar
  • Sealing Material: Silicone Rubber
  • Mating Cycles: >500
  • Shielding: Yes
  • Flammability Rating: UL94-VO
  • Approvals: UL, CSA
  • RohS Compliant: Yes

RTS6BS10N6P03-APL-FN
RTS6BS10N6P03
Amphenol Sine Systems
As low as: $7.57 (USD)
RTS6BS16N26P03-FNT-M
RTS6BS16N26P03
Amphenol Sine Systems
As low as: $8.95 (USD)
RTS012N8S03-ASN-FNT-
RTS012N8S03
Amphenol Sine Systems
As low as: $3.76 (USD)
RTS014DCG-APL-FNT-ME
RTS014DCG
Amphenol Sine Systems
As low as: $2.10 (USD)
RTS016DCG-ASN-FNT-ME
RTS016DCG
Amphenol Sine Systems
As low as: $2.30 (USD)
RTS08N4S-ASN-FNT-MED
RTS08N4S
Amphenol Sine Systems
As low as: $9.05 (USD)
RTS610NDCG-ASN-FNT-M
RTS610NDCG
Amphenol Sine Systems
As low as: $1.82 (USD)
RTS6BS10N4P03-ASN-FN
RTS6BS10N4P03
Amphenol Sine Systems
As low as: $7.60 (USD)
RTS6BS10N6S03-FNT-ME
RTS6BS10N6S03
Amphenol Sine Systems
As low as: $7.71 (USD)
RTS6BS14N12P03-ASN-F
RTS6BS14N12P03
Amphenol Sine Systems
As low as: $8.48 (USD)
RTS6BS14N7P03-FNT-ME
RTS6BS14N7P03
Amphenol Sine Systems
As low as: $8.11 (USD)
RTS714N12S03-ASN-FNT
RTS714N12S03
Amphenol Sine Systems
As low as: $5.38 (USD)
