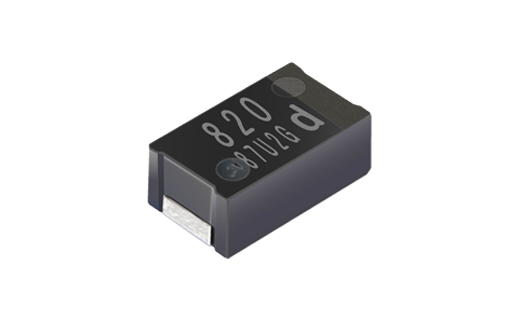

Panasonic EEF-GY Series SP-Cap™ Surface Mount Specialty Conductive Polymer Aluminum Electrolytic Capacitors

With high ripple current capability

Panasonic’s EEF-GY Series SP-Cap™ Surface Mount Specialty Conductive Polymer Aluminum Electrolytic Capacitors redefine the term "specialty" capacitor. The EEF-GY Series provides extremely high ripple current in the range of 10200 mAr.m.s. The high ripple current capability ensures the parts are designed to withstand high load levels and makes the EEF-GY Series ideal for tough industrial applications. These are high-temperature capacitors that have an endurance of 2,000 hours at 105°C providing extremely long life when designed into your project. The EEF-GY Series combines all these specifications in just a low 3 mΩ Max ESR and 3.0mm maximum height package.

Features & Benefits

  • Extremely Low ESR: 3 mΩ Max.
  • Large Capacitance: 820 µF Max.
  • High Temperature / Long Life: 2000 Hours at 105°C
  • Very High Ripple Current Range: 10200 mAr.m.s
  • Product Height: 3.0mm Max.
  • High-Temperature Lead-Free Reflow
  • High Capacitance and High Ripple Current
  • Operating Temperature Range: -55 °C to +105 °C
  • RoHS / REACH Compliant
  • Halogen Free
