Manufacturer Part #
P6SMB13A-M3/52
600W,13V 5%,UNIDIR,SMB TVS
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:750 per Reel Package Style:SMB (DO-214AA) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2520 | ||||||||||
Product Specification Section
Vishay P6SMB13A-M3/52 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=P6SMB13A-M3/52&field4=Vishay&field18=https://p1apac.futureelectronics.com/de/p/electromechanical--circuit-protection--tvs-diodes/p6smb13a-m3-52-vishay-3171481
Vishay P6SMB13A-M3/52 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Breakdown Voltage-Min: | 12.4V |
| Clamping Voltage-Max: | 18.2V |
| Power Dissipation: | 5W |
| Peak Output Current: | 33A |
| Reverse Leakage Current: | 1µA |
| Peak Power: | 600W |
| Test Current: | 1mA |
| Standoff Voltage: | 11.1V |
| Reverse Current-Max: | 1µA |
| Forward Voltage: | 3.5V |
| Operating Temp Range: | -65°C to +150°C |
| Storage Temperature Range: | -65°C to +150°C |
| Breakdown Voltage-Max: | 13.7V |

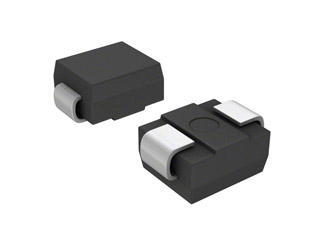

| Package Style: | SMB (DO-214AA) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
7,500
Singapore:
7,500
On Order:
0
Factory Lead Time:
9 Weeks
Quantity
Unit Price
750
$0.139
2,250
$0.136
3,750
$0.135
15,000
$0.132
22,500+
$0.13
Product Variant Information section
Available Packaging
Package Qty:
750 per Reel
Package Style:
SMB (DO-214AA)
Mounting Method:
Surface Mount
