Manufacturer Part #

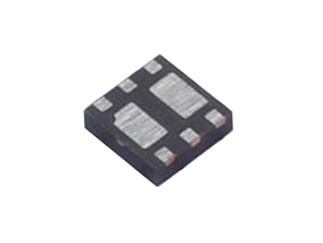

ZXTP56020FDBQ-7
SS Low Sat Transistor U-DFN2020-6/SWP T&R 3K
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2434 | ||||||||||
Product Specification Section
Diodes Incorporated ZXTP56020FDBQ-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=ZXTP56020FDBQ-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/zxtp56020fdbq-7-diodes-incorporated-9098395
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=ZXTP56020FDBQ-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/de/p/semiconductors--discretes--transistors--bipolar-transistors/zxtp56020fdbq-7-diodes-incorporated-9098395
Diodes Incorporated ZXTP56020FDBQ-7 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Polarity: | PNP |
| CE Voltage-Max: | 20V |
| Collector Current Max: | 2A |
| Power Dissipation-Tot: | 405mW |
| Collector - Base Voltage: | 20V |
| Collector - Emitter Saturation Voltage: | 110mV |
| Emitter - Base Voltage: | 7V |
| DC Current Gain-Min: | 100 |
| Collector - Current Cutoff: | 100nA |
| Configuration: | Dual |
| Operating Temp Range: | -55°C to +150°C |
| Rise Time: | 50ns |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
27,000
Singapore:
27,000
On Order:
0
Factory Lead Time:
24 Weeks
Quantity
Unit Price
3,000
$0.565
6,000+
$0.55
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
