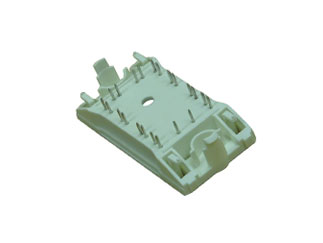

onsemi | NXH100B120H3Q0SG

Manufacturer Part #

NXH100B120H3Q0SG

IGBT Modules PIM 60-80KW Q0BOOST

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi NXH100B120H3Q0SG - Technical Attributes
Attributes Table
CE Voltage-Max: 1200V
Collector Current @ 25C: 50A
Power Dissipation-Tot: 186mW
Gate - Emitter Voltage: 20V
Collector - Emitter Saturation Voltage: 1.77V
Turn-on Delay Time: 44ns
Turn-off Delay Time: 203ns
Qg Gate Charge: 409nC
Reverse Recovery Time-Max: 15ns
Leakage Current: 0.8µA
Input Capacitance: 9075pF
Thermal Resistance: 0.82°C/W
Operating Temp Range: -40°C to +150°C
Mounting Method: Chassis Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
192
Factory Lead Time:
14 Weeks
Minimum Order:
24
Multiple Of:
24
Total
$1,326.48
USD
Quantity
Unit Price
24
$55.27
48
$54.93
72
$54.74
96
$54.60
120+
$54.15
