Manufacturer Part #
MC9S12XDP512MAG

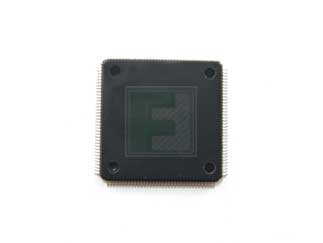

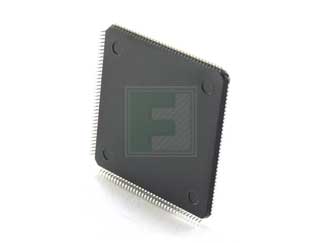

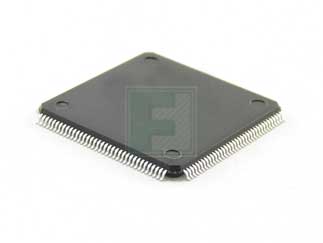

S12XD 16-bit MCU, HCS12X core, 512KB Flash, 80MHz, QFP 144
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:300 per Tray Package Style:LQFP-144 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2451 | ||||||||||
Product Specification Section
NXP MC9S12XDP512MAG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
3A991.a.2
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
NXP MC9S12XDP512MAG - Technical Attributes
Attributes Table
| Family Name: | HCS12X |
| Core Processor: | HCS12X |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 512kB |
| RAM Size: | 32kB |
| Speed: | 80MHz |
| No of I/O Lines: | 119 |
| InterfaceType / Connectivity: | CAN/I2C/SCI/SPI |
| Peripherals: | CAN/I2C/On-Chip-ADC/PWM/SCI/SPI/Watchdog |
| Number Of Timers: | 1 |
| Supply Voltage: | 2.35V to 5.5V |
| Operating Temperature: | -40°C to +125°C |
| On-Chip ADC: | 24-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | LQFP-144 |
| Mounting Method: | Surface Mount |
Features & Applications
Pricing Section
Global Stock:
600
USA:
600
Factory Lead Time:
13 Weeks
Quantity
Unit Price
300+
$29.69
Product Variant Information section
Available Packaging
Package Qty:
300 per Tray
Package Style:
LQFP-144
Mounting Method:
Surface Mount
