Manufacturer Part #
PG1096.333NLT

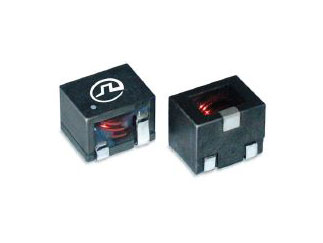

Fixed Inductors PG1096NL 26x26mm 29.5uH13.5A 10.5mOhm
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Pulse Electronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:60 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Pulse Electronics PG1096.333NLT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=PG1096.333NLT&field4=Pulse Electronics&field18=https://p1apac.futureelectronics.com/es/p/passives--inductors--wirewound-inductors/pg1096-333nlt-pulse-electronics-2138552
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=PG1096.333NLT&field4=Pulse Electronics&field18=https://p1apac.futureelectronics.com/es/p/passives--inductors--wirewound-inductors/pg1096-333nlt-pulse-electronics-2138552
Pulse Electronics PG1096.333NLT - Technical Attributes
Attributes Table
| Type: | Unshielded |
| Inductance-Nom: | 29.5µH |
| Rated Current-Max: | 13.5A |
| Tolerance (%): | ±20% |
| DC Resistance: | 10.5mΩ |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +130°C |
| Dimension: | L 26mm x W 26mm x H 14.8mm |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
60
$2.49
120
$2.46
180
$2.44
240
$2.43
300+
$2.40
Product Variant Information section
Available Packaging
Package Qty:
60 per Reel
Mounting Method:
Surface Mount
