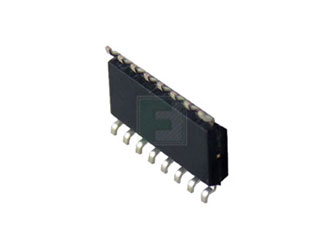

L6390D Series 20 V 290 mA SMT High Voltage High/Low Side Driver - SO-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:SOIC-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics L6390D - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=L6390D&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/es/p/semiconductors--analog--drivers--mosfet-igbt-drivers/l6390d-stmicroelectronics-1011392
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=L6390D&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/es/p/semiconductors--analog--drivers--mosfet-igbt-drivers/l6390d-stmicroelectronics-1011392
STMicroelectronics L6390D - Technical Attributes
Attributes Table
| Configuration: | Half Bridge |
| No of Outputs: | Dual |
| On-state Resistance-Max: | 120Ω |
| Peak Output Current: | 430mA |
| Supply Voltage-Max: | 20V |
| Rated Power Dissipation: | 0.8W |
| Quiescent Current: | 720µA |
| Turn-off Delay Time: | 125ns |
| Turn-on Delay Time: | 125ns |
| Rise Time: | 75ns |
| Fall Time: | 35ns |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | SOIC-16 |
| Mounting Method: | Surface Mount |
