Manufacturer Part #
MIC4685WR

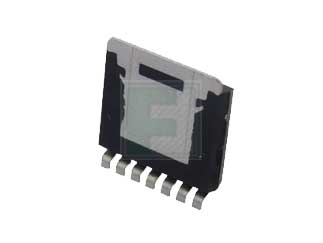

MIC4685 Series 30 V 200 kHz 3 A SuperSwitcher™ Buck Regulator - SPAK-7
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:48 per Tube Package Style:SPAK-7 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip MIC4685WR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: Qualification of Microchip Technology Colorado – Fab 5 (MCSO) as a new fabrication location for MIC5207, MIC5209, MM5450, MM5451, MIC38C44, MIC38C45, MIC38C42, MIC38C43, MIC5233, MIC5205, MIC5235, MIC5219, MIC5225, MIC4684, MIC5239, MIC5236, MIC5234,MIC5238, MIC5210, MIC79050, MIC5212, MIC5201, MIC3490, MIC4685, MIC5295, MIC4680, and MIC5237 device families available in various packages.Reason for Change: To improve manufacturability and on time delivery performance by qualifying a new fabrication location (MCSO - FAB 5), which is a Microchip-owned facility that offers significant expansion potential to better meet future client demand. *Note: The attached file called Tempe_Fab2_IATF_Decertification is for the manufacturing site deactivation of Microchip Technology Tempe – Fab 2 (TMGR), contact your local Microchip sales office for inquiries.Pre and Post Summary Changes:• Pre Change: Fabrication Site = Microchip Technology Tempe – Fab 2 (TMGR), Wafer Size = 8"• Post Change: Fabrication Site = Microchip Technology Colorado(MCSO), Wafer Size = 6"
Part Status:
Microchip MIC4685WR - Technical Attributes
| Topology: | Buck |
| Input Voltage: | 4V to 30V |
| Output Current-Max: | 3A |
| Output Type: | Adjustable |
| Switching Frequency-Max: | 200kHz |
| Operating Temp Range: | -40°C to +125°C |
| Duty Cycle-Max: | 94% |
| Efficiency: | 85% |
| No. of Outputs: | 1 |
| Quiescent Current: | 12mA |
| Storage Temperature Range: | -65°C to +150°C |
| Package Style: | SPAK-7 |
| Mounting Method: | Surface Mount |
Features & Applications
Available Packaging
Package Qty:
48 per Tube
Package Style:
SPAK-7
Mounting Method:
Surface Mount
