Manufacturer Part #
X0202NA2BL2

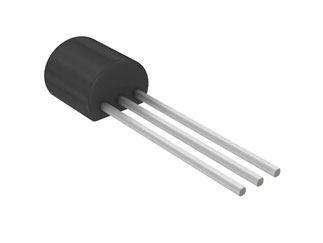

XO2 Series 800 V 1.25 A Sensitive Gate Through Hole SCR - TO-92-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Ammo Pack Package Style:TO-92 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics X0202NA2BL2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=X0202NA2BL2&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/fr/p/electromechanical--circuit-protection--protection-thyristors/x0202na2bl2-stmicroelectronics-3067983
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=X0202NA2BL2&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/fr/p/electromechanical--circuit-protection--protection-thyristors/x0202na2bl2-stmicroelectronics-3067983
STMicroelectronics X0202NA2BL2 - Technical Attributes
Attributes Table
| Type: | SCR |
| No of Channels: | 1 |
| On-State Voltage [Vtm]: | 1.45V |
| On State Current [It]-Typ: | 1.25A |
| Off-State Voltage [Vdrm]: | 800V |
| Off-State Current [Idrm]: | 5µA |
| Hold Current [Ih]: | 5mA |
| Gate Trigger Current [Igt]-Max: | 50µA |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -40°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| Package Style: | TO-92 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
2,000
$0.157
4,000
$0.156
6,000
$0.154
10,000
$0.153
20,000+
$0.15
Product Variant Information section
Available Packaging
Package Qty:
2000 per Ammo Pack
Package Style:
TO-92
Mounting Method:
Through Hole
