Manufacturer Part #
DTVS22SP4UR-7

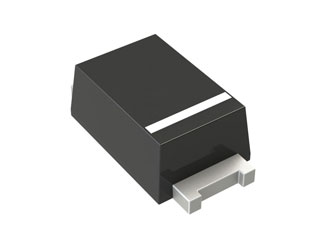

35.5 V 11.3 A 400 W Surface Mount Transient Voltage Suppressor - SOD-123F
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOD-123F Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated DTVS22SP4UR-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=DTVS22SP4UR-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/fr/p/electromechanical--circuit-protection--tvs-diodes/dtvs22sp4ur-7-diodes-incorporated-1182091
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=DTVS22SP4UR-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/fr/p/electromechanical--circuit-protection--tvs-diodes/dtvs22sp4ur-7-diodes-incorporated-1182091
Diodes Incorporated DTVS22SP4UR-7 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Breakdown Voltage-Min: | 24.4V |
| Clamping Voltage-Max: | 35.5V |
| Directional: | Uni-Directional |
| Power Dissipation: | 400W |
| Peak Output Current: | 11.3A |
| Peak Power: | 400W |
| Standoff Voltage: | 22V |
| Operating Temp Range: | -55°C to +150°C |
| Storage Temperature Range: | -55°C to +150°C |
| Breakdown Voltage-Max: | 26.9V |
| Package Style: | SOD-123F |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
32 Weeks
Quantity
Unit Price
3,000
$0.126
6,000
$0.125
9,000
$0.124
12,000
$0.123
15,000+
$0.121
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOD-123F
Mounting Method:
Surface Mount
