Manufacturer Part #
350690-1

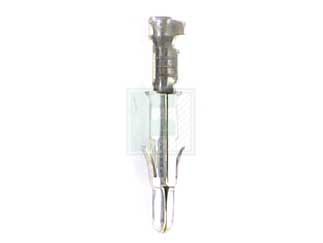

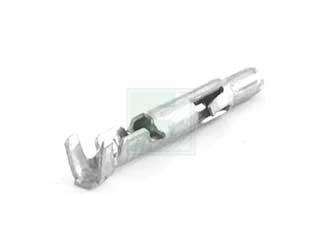

Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Pin Contact
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Bag Mounting Method:Cable Mount | ||||||||||
| Date Code: | 2109 | ||||||||||
Product Specification Section
TE Connectivity 350690-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=350690-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connector-tools-contacts-accessories/350690-1-te-connectivity-2470110
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=350690-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connector-tools-contacts-accessories/350690-1-te-connectivity-2470110
TE Connectivity 350690-1 - Technical Attributes
Attributes Table
| Type: | Contact |
| Contact Termination: | Crimp Terminal |
| No of Positions: | 1 |
| Wire Gauge: | AWG 24-18 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 600V |
| Mounting Method: | Cable Mount |
Features & Applications
The 350690-1 is a Universal Mate-N-Lok Pre-Tin 24-18 AWG Pin Contact.
The AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment. The electrical connector is an integral component in these applications.
Features:
- Product Type = Contact
- Product Line = Universal MATE-N-LOK
- Insulation Diameter (mm [in]) = 1.02-2.54 [.040-.100]
- Current Rating (A) = 19
- Voltage (VAC) = 600
- Termination Method = Crimp
- Solder Tail Contact Plating = Pre-Tin
- Contact Type = Pin
- Contact Termination Type = Crimp
- Contact Base Material = Brass
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
10,000+
$0.073
Product Variant Information section
Available Packaging
Package Qty:
10000 per Bag
Mounting Method:
Cable Mount
