Manufacturer Part #
1658641-3

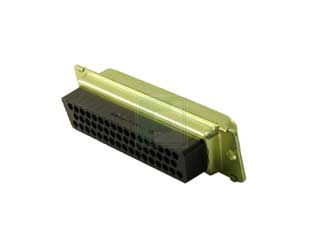

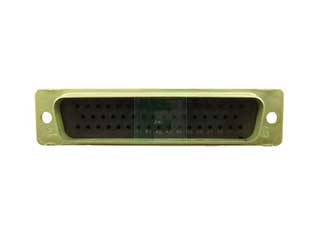

HDF-20 Series 50 Position Plug Crimp Snap Standard Cable Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:450 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1658641-3 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1658641-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-d-subs/1658641-3-te-connectivity-5055777
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1658641-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-d-subs/1658641-3-te-connectivity-5055777
TE Connectivity 1658641-3 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Cable Plug |
| No of Positions: | 50 |
| No of Rows: | 3 |
| Termination: | Crimp Snap |
| Material: | Full Metal |
| Shell Size: | 5 D |
| Gender: | Male |
| Color: | Black |
| Current Rating: | 10.42A |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000MΩ |
| Operating Temperature: | -55°C to +105°C |
| Mounting Method: | Through Hole |
Features & Applications
The 1658641-3 is a Part of HDF-20 Series, 50 Position Plug Crimp Snap Standard Cable Connector
Product Features:
- Product Type = Connector
- Product Series = HDP-20 (Crimp Snap)
- Mating Connector Lock = With
- Mating Connector Lock Type = Mounting Holes
- Shell Size = 5
- Shell Type = Full Metal Shell
- Grounding Indents = Without
- Grade = Standard
- Color = Black
- Shell Material = Steel
- Number of Positions = 50
- Shell Plating = Zinc
- Insert Material = Glass-Filled Nylon
- Insert Flammability Rating = UL 94V-0
- Preloaded = No
- Contact Size = 20
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
9 Weeks
Quantity
Unit Price
450+
$4.40
Product Variant Information section
Available Packaging
Package Qty:
450 per Box
Mounting Method:
Through Hole
