Référence fabricant

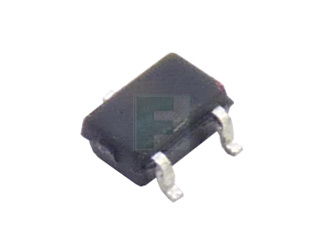

MIC809-5SYC3-TR
MIC809 Series 2.93 V 140 ms Surface Mount Microprocessor Reset Circuit-SC-70-3
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Microchip | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :3000 par Reel Style d'emballage :SOT-323 (SC-70) Méthode de montage :Surface Mount | ||||||||||
| Code de date: | 2416 | ||||||||||
Microchip MIC809-5SYC3-TR - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
*****FPCN111595 UPDATE/LOCATION CHANGE*****Description of Change:August 18, 2025: Issued final notification. Attached the Qualification Report. Provided the estimatedfirst ship date to be on October 29, 2025Fabrication Site:OLD- Microchip Technology Tempe ? Fab 2(TMGR)NEW- Microchip Technology Colorado (MCSO)Wafer SizeOLD- 8"NEW- 6"
Description of Change:Qualification of Microchip Technology Colorado ? Fab 5 (MCSO) as a new fabrication location for selected MIC18xx, MIC20xx, MIC23xx, MIC27xx, MIC28xx, MIC33xx, MIC47xx, MIC51xx, MIC53xx, MIC63xx, MIC80xx, MIC81xx, MIC82xx and MIC94xx device families available in various packages.Reason for Change:To improve manufacturability and on time delivery performance by qualifying a new fabrication location (MCSO - FAB 5), which is a Microchip-owned facility that offers significant expansion potential to better meet future client demand. *Note: The attached file called Tempe_Fab2_IATF_Decertification is for the manufacturing site deactivation of Microchip Technology Tempe ? Fab 2 (TMGR), contact your local Microchip sales office for inquiries.Change Implementation Status:In ProgressEstimated Qualification Completion Date:September 2025
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=MIC809-5SYC3-TR&field4=Microchip&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--analog--system-management--voltage-supervisors/mic809-5syc3-tr-microchip-5017983
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=MIC809-5SYC3-TR&field4=Microchip&field18=https://p1na.futureelectronics.com/fr/p/semiconductors--analog--system-management--voltage-supervisors/mic809-5syc3-tr-microchip-5017983
Microchip MIC809-5SYC3-TR - Caractéristiques techniques
| No of Outputs: | Single |
| Threshold Voltage: | 2.93|V |
| Supply Voltage-Max: | 5.5V |
| Reset Timeout: | 140ms |
| Style d'emballage : | SOT-323 (SC-70) |
| Méthode de montage : | Surface Mount |
Fonctionnalités et applications
The MIC809 has an active-low /RESET output, while the MIC810 offers an active-high RESET output. The reset output is guaranteed to remain asserted for a minimum of 140 ms after VCC has risen above the designated reset threshold level. Having a push-pull output stage, the MIC809/810 does not require a pull-up resistor at the output. The MIC809/810 comes in a 3-pin SOT-23 and SC-70 package. The MIC809 is also available with a shorter reset timeout (30 ms min.). See the MIC809-5.
Features :
- Precision voltage monitor for 3 V, 3.3 V or 5 V power supplies
- /RESET remains valid with VCC as low as 1.4 V for SOT- 23 packaged part
- /RESET remains valid with VCC as low as 1 V for SC70 packaged part
- Typically less than15 µA supply current for SOT-23 packaged part
- 5 µ typical supply current for SC70 packaged part
- 140 ms minimum reset pulse widths available
- Available in 3-pin SOT-23 and SC-70 package
Applications :
- Portable equipment
- Intelligent instruments
- Critical microprocessor power monitoring
- Printers/computers
- Controllers
To learn more about MIC809x product family, Click here
Emballages disponibles
Qté d'emballage(s) :
3000 par Reel
Style d'emballage :
SOT-323 (SC-70)
Méthode de montage :
Surface Mount
