TE Connectivity | 66507-4

Manufacturer Part #

66507-4

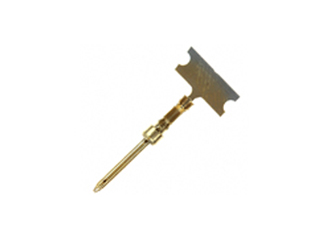

HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Features & Applications

The 66507-4 is a part of HDP20 Series 24-28 AWG Gold Flash wire to crimpCrimp Pin D-Sub Contact

Product Type Features:

  • Product Type = Contact
  • Product Series = HDP-20 (Crimp Snap)
  • Termination Method to Wire/Cable = Crimp
  • Wire Insulation Diameter (mm [in]) = 0.76 – 1.02 [0.030 – 0.040]
  • Insulation Support = Yes
  • Grade = Standard
  • Contact Retention in Housing = Crimp Snap-In
  • Solder Tail Contact Plating = Gold Flash over Nickel
  • Pin Diameter (mm [in]) = 1.02 [0.040]
  • Wire Range (mm² [AWG]) = 0.08 - 0.20 [28-24]
  • Used With = CPC Connectors, AMPLIMITE HDP-20
  • Contact Type = Pin
  • Contact Base Material = Brass
  • Contact Plating, Mating Area, Material = Gold Flash
  • Contact Size = 20





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
15 Weeks
Minimum Order:
40000
Multiple Of:
40000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$4,760.00
USD
Quantity
Unit Price
40,000+
$0.119
