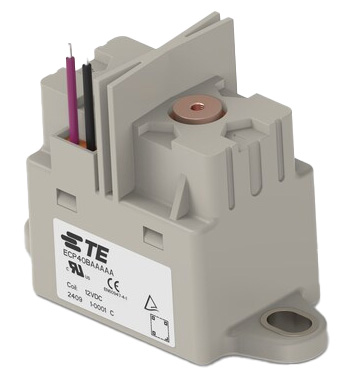

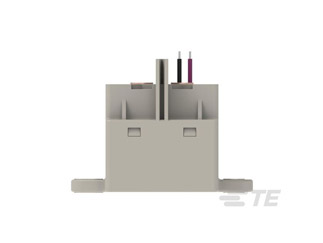

TE Connectivity ECP40B Series High Voltage DC Contactors

For safe, reliable switching in energy storage, solar, and EV systems.

The ECP40B series from TE Connectivity is a high-voltage DC contactor specifically engineered for use in demanding environments such as battery energy storage systems, photovoltaic (solar) inverters, and EV charging infrastructure. Ideal for pre-charge applications, the ECP40B series supports up to 1500 VDC systems and meets stringent insulation requirements in accordance with UL60947-4-1 and IEC60947-4-1 standards.

Designed with hermetically sealed ceramic technology, this contactor ensures high reliability and safety even in harsh operating conditions. The ECP40B series also supports bi-directional load handling, offering flexible integration into various high-voltage systems.

Features

  • 40 A making capability
  • Breaking capacity at 1500 VDC
  • Supports bi-directional load
  • Hermetically sealed using ceramic technology for enhanced safety and reliability

Applications

  • Battery energy storage systems (BESS)
  • Solar (photovoltaic) inverters
  • DC converters
  • EV charging systems

Compliance & Approvals

  • UL: E82292
  • TÜV: R50630715
  • CE: 724-00008

Main Contact Data

Contact current 40 A
Maximum breaking voltage 1500 VDC
Contact arrangement 1 Form X (SPST-NO-DM)
Initial voltage drop ≤ 160 mV @ 20 A, 6 VDC
Operate time maximum (at 23 ℃) 30 ms
Release time, maximum (at 23 ℃) 10 ms
Mechanical life 200,000 cycles

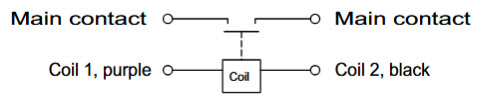

Circuit Diagram
