Hirose Electric | FX8-120S-SV(21)

Manufacturer Part #

FX8-120S-SV(21)

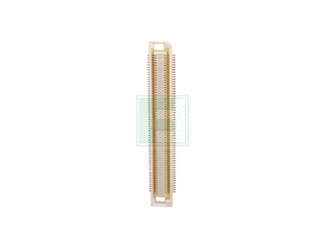

FX8 Series 120 Position 0.6 mm Pitch Surface Mount Board to Board Receptacle

ECAD Model:
Mfr. Name: Hirose Electric
Standard Pkg:
Product Variant Information section
Date Code: 2434
Product Specification Section
Hirose Electric FX8-120S-SV(21) - Technical Attributes
Attributes Table
Mounting Method: Surface Mount
Features & Applications

The FX8-120S-SV(21) is a Part of FX8 Series 120 Position 0.6 mm Pitch, Board to Board Vertical Type Socket. It has an Operating Current of 0.4 A and Operating Temperature of - 55 °C to 85 °C.

Features:

  • The board-to-board stacking height corresponds to 3 and 4mm
  • The coplanarity of the SMT solder area lead is maintained at the high accuracy of less than 0.1mm
  • The very small guide rib is provided, and secures +/-0.6mm self-alignment, considering the mating operability into accounts
  • The boss prevents mis-insertion in the board to cause due to the boss position and boss diameter

Applications:

  • Note pc
  • business equipments, which require miniaturization or light-weight

View the Series of FX8 Sockets

Read More...
Pricing Section
Global Stock:
24
USA:
24
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
12
Multiple Of:
12
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$36.72
USD
Quantity
Unit Price
12
$3.06
48
$3.00
120
$2.97
300
$2.93
480+
$2.88
