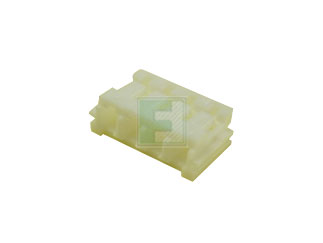

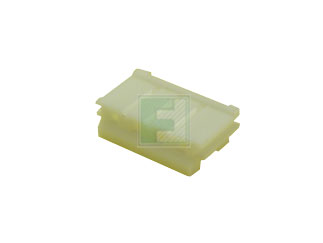

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

EHR-4

4 Position 2.5mm Disconnectable Crimp Style EH Connector

EHR-4 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	JST
Standard Pkg:	Product Variant Information section Available Packaging Bag BagSelected Variant Qty: 1+ / Unit Price: $0.0316 / Stock: 3,405 Qty: 1+$0.0316 Stock: 3,405 Package Qty: 1000 per Bag Mounting Method: Wire Mount
Date Code:	2305

JST EHR-4 - Technical Attributes

Type:	Wire to Board
No of Positions:	4
Pitch:	2.5 mm
Style/Orientation:	Free Hanging Socket/Receptacle
Termination:	Crimp
Operating Temp Range:	-25°C to +85°C
Voltage Rating:	250V
Current Rating:	3A
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
No of Rows:	1
Gender:	Female
Color:	Natural
Insulation Resistance:	1000MΩ
Mounting Method:	Wire Mount

Expand List

Collapse List

Features & Applications

EH Housings from JST are the thinnest 2.5 mm (.098”) pitch connectors. With a height of 8.1MM(.319”) after mounting and 3.8mm (.150”)in width this disconnectable crimp style connector is designed for high density connection. This compact, highly reliable connector is perfect for internal wire designs for the printed circuit board applications.

EHR-4, is a 4 position white housing.
