Manufacturer Part #
SSL-LX3052GD

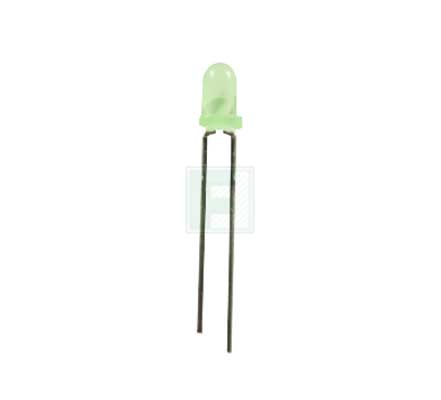

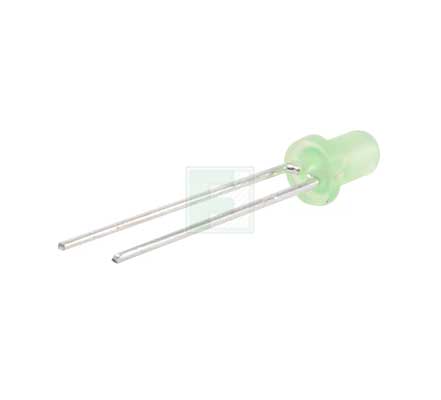

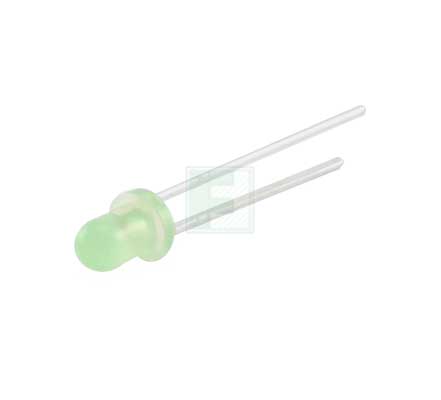

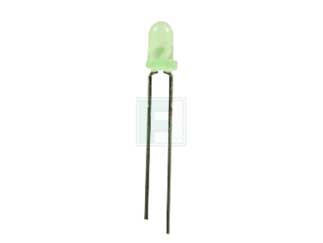

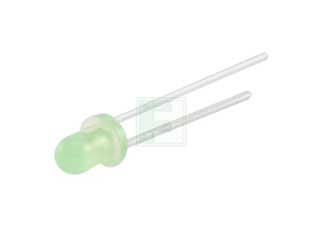

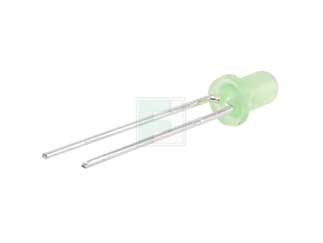

Green 3 mm 80° Diffused 15 mcd 2 V Through Hole LED - T-1
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Lumex | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Package Style:T-1 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Lumex SSL-LX3052GD - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSL-LX3052GD&field4=Lumex&field18=https://p1na.futureelectronics.com/p/1660075
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSL-LX3052GD&field4=Lumex&field18=https://p1na.futureelectronics.com/p/1660075
Lumex SSL-LX3052GD - Technical Attributes
Attributes Table
| Color: | Green |
| Lens Type: | Diffused |
| Forward Voltage: | 2V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 15mcd |
| Viewing Angle: | 80° |
| Dimension: | H 5.25mm x D 4mm |
| Package Style: | T-1 |
| Mounting Method: | Through Hole |
Features & Applications
The SSL-LX3052GD is a 2 V 3 mm Green Diffused 80 mcd Round Through Hole QuasarBrite LEDs.
Features:
- State-of-the-Art LED Technology
- Choice of LED Colors and Lens FInishes
- Lead Frame / Lens Casting Reliability
- Easy-to-Solder Leads, Tin Finish
- Available Bulk or on Tape and Reel
- Custom Solutions available
Parameters:
- Peak Forward Current : 150 mA
- Steady Current : 25 mA
- Power Dissipation : 105 mW
- Derate from 25°c : -1.2 mW/°C
- Operating temperature : -40°C to + 85°C
- Peak wave length : 565 nm
- Forward voltage : 2.0 V to 2.8 V
- Reverse Voltage : 5.0 V
- Emitted color : Green
- Epoxy Lens Finish : Green Diffused
Applications:
- Industrial Controls
- Medical Eqiupment
- Communications Equipment
- Test and Measurement Equipment
- Security Electronics
- Life Safety Equipment
- Large Panel Indicators
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1,000
$0.104
2,000
$0.102
3,000
$0.101
4,000
$0.10
5,000+
$0.0976
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
Package Style:
T-1
Mounting Method:
Through Hole
