Manufacturer Part #
776087-1

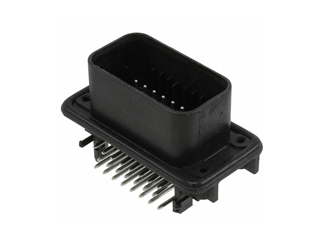

DEUTSCH AMPSEAL 23 Position Snap Mount Three Row Right Angle 4 mm Pin Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:200 per Tray Mounting Method:Snap Mount | ||||||||||
| Date Code: | 2248 | ||||||||||
TE Connectivity 776087-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Customer drawing PCB layout shows the header pin thru hole at DIA1.38+/-0.10 This hole size is too small for the header pin size and is changing to DIA1.75+/-0.10 Reason For Change: Document Clarification. The current PCB thru hole size is too small for the header pin diameter and is changing to add greater hole clearance. There is no change to the header pin size or the product in general, this is only an information change on the customer drawing
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776087-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/2471357
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776087-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/2471357
TE Connectivity 776087-1 - Technical Attributes
| No of Positions: | 23 |
| Pitch: | 4 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Type: | Wire to Board |
| Mounting Method: | Snap Mount |
Available Packaging
Package Qty:
200 per Tray
Mounting Method:
Snap Mount
