Manufacturer Part #

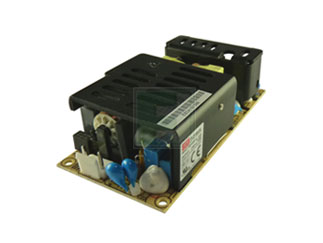

PLP-60-24
100 - 240Vac, 60W, 2500mA, 18-24V, IP20 LED Driver
| | |||||||||||
| | |||||||||||
| Mfr. Name: | MEAN WELL | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
MEAN WELL PLP-60-24 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PLP-60-24&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/2870392
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PLP-60-24&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/2870392
-
MEAN WELL PLP-60-24 - Technical Attributes
Attributes Table
| Nominal Input Voltage: | 100VAC to 240VAC |
| Max Output Power: | 60W |
| Minimum Output Voltage: | 18V |
| Maximum Output Voltage: | 24V |
| Minimum Output Current: | 2500mA |
| Maximum Output Current: | 2500mA |
| Input Power Factor: | 0.9 |
| Efficiency: | 88% |
| Number of Output Channels: | 1 |
| Certifications: | CE,cUL,UL |
| Driver Class: | Class I,Class 2 |
| IP Rating: | IP20 - Indoor Lighting Only |
| Dimming Control: | Excludes Dimming |
| Is Dim to Off: | False |
Features & Applications
PLP-60-24 is a 60 W Single Output LED Power Supply with an Output Voltage of 24 V and Rated Current of 2.5 A. PLP-60 Series are a range of 60 W open frame power supplies designed for low cost and built-in installation of LED lighting related applications.
Features:
- Universal AC input / Full range
- Short circuit, over load, over voltage protections
- Built-in active PFC function
- Cooling by free air convection
- No minimum load requirement
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications
Applications:
- Small scale moving signs
- LED-based decorative lighting
- LED stage lighting equipment
