Manufacturer Part #
TSHS-508-D-04-A-G-LF

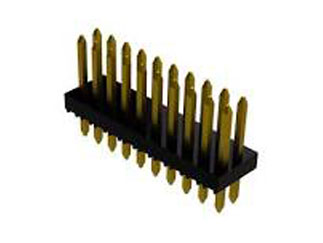

TSHS Series 16 Position Dual Row 1.27 mm Pitch Through Hole Straight Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Major League Electronics | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Bag Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
Major League Electronics TSHS-508-D-04-A-G-LF - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
HTS Code:
8536.69.40.40
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TSHS-508-D-04-A-G-LF&field4=Major League Electronics&field18=https://p1na.futureelectronics.com/p/3025846
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TSHS-508-D-04-A-G-LF&field4=Major League Electronics&field18=https://p1na.futureelectronics.com/p/3025846
Major League Electronics TSHS-508-D-04-A-G-LF - Technical Attributes
Attributes Table
| No of Positions: | 16 |
| Pitch: | 1.27 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Current Rating: | 1A |
| Contact Plating: | Gold |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Header |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
25
$0.825
75
$0.805
200
$0.785
400
$0.775
1,250+
$0.74
Product Variant Information section
Available Packaging
Package Qty:
1 per Bag
Mounting Method:
Through Hole
