Manufacturer Part #
VSC8211XVW

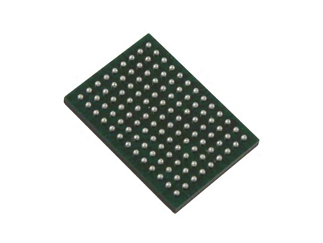

PHY 2-CH 10Mbps/100Mbps/1Gbps 3.3V 117-Pin LBGA Tray
Microchip VSC8211XVW - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change:Qualification of new solder mask material AUS308 for AT56583C-07, AT56H09D-07, VSC8211XVW, VSC8224XHG, VSC8244XHG, VSC8658XHJ, ZL50075GAG2 and ZL50232GDG2 catalog part numbers (CPN) available in various packages at ASE assembly site.Reason for Change:To improve productivity by qualifying new solder mask material AUS308.
PCN Status:Final NotificationPCN Type:Manufacturing ChangeDescription of Change:Qualification of MTAI as an additional final test site for selected VSC751x, VSC33xx and VSC82xx device families available in various packages.Impacts to Data Sheet:NoneChange ImpactNoneReason for Change:To improve manufacturability by qualifying MTAI as an additional final test site.Change Implementation Status:In ProgressEstimated First Ship Date:April 10, 2022 (date code: 2216)
Part Status:
Microchip VSC8211XVW - Technical Attributes
Supply Voltage-Nom: | 1.14V to 1.26V |
No of Functions / Channels: | 1 |
Interface Type: | GMII/MII/RGMII/SGMII |
Data Rate: | 1.25Gbps |
Supply Current: | 149mA |
Power Dissipation: | 1W |
Operating Temp Range: | 0°C to 100°C |
Storage Temperature Range: | -65°C to +150°C |
No of Terminals: | 117 |
Moisture Sensitivity Level: | 3 |
Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
154 per Tray
Mounting Method:
Surface Mount
