Manufacturer Part #
2SH-C-03-TR-SMT-T/R

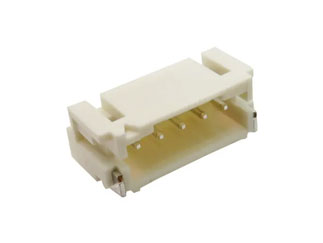

3 Position 2mm Pitch Right Angle SMT Connector Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Adam Tech | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:800 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2403 | ||||||||||
Product Specification Section
Adam Tech 2SH-C-03-TR-SMT-T/R - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2SH-C-03-TR-SMT-T/R&field4=Adam Tech&field18=https://p1na.futureelectronics.com/p/3090398
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2SH-C-03-TR-SMT-T/R&field4=Adam Tech&field18=https://p1na.futureelectronics.com/p/3090398
Adam Tech 2SH-C-03-TR-SMT-T/R - Technical Attributes
Attributes Table
| No of Positions: | 3 |
| Pitch: | 2 mm |
| Termination: | Solder |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 100V |
| Current Rating: | 2A |
| Contact Plating: | Tin |
| Material: | Brass |
| No of Rows: | 1 |
| Type: | Shrouded Header |
| Insulation Resistance: | 1GΩ |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
800
USA:
800
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
800
$0.185
1,600
$0.182
3,200
$0.18
4,000
$0.179
12,000+
$0.175
Product Variant Information section
Available Packaging
Package Qty:
800 per Reel
Mounting Method:
Surface Mount
