Keystone | 1436

Manufacturer Part #

1436

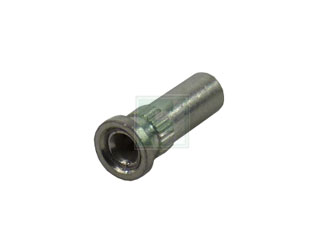

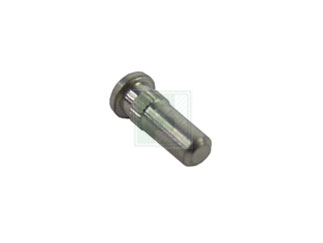

1436 Series Tin Straight Press Fit Receptacle Micro Jack

ECAD Model:
Mfr. Name: Keystone
Standard Pkg:
Product Variant Information section
Date Code: 2136
Product Specification Section
Keystone 1436 - Technical Attributes
Attributes Table
Type: Receptacle
Style/Orientation: Straight Socket/Receptacle
Gender: Female Receptacle
Termination: Press-fit
Features & Applications

The 1436 is a 6-finger Closed Entry Contact .022 in Press Fit Tin Pin Micro Jack.

Features:

  • Space saving design for high density packaging
  • Beryllium Copper multi-spring contact maintains retention after multiple insertions
  • Ideal for mounting transistors, resistors, diodes, IC’s and similar miniature components
  • Custom micro jacks manufactured to your specifications
  • Other platings available upon request

Specifiactions:

  • Body: Brass, ASTM-B16
  • Spring: Beryllium Copper

View the Available Press Fit Micro Jack

Read More...
Pricing Section
Global Stock:
50
USA:
50
On Order:
0
Factory Stock:Factory Stock:
4,885
Factory Lead Time:
N/A
Minimum Order:
1
Multiple Of:
1
Total
$0.89
USD
Quantity
Unit Price
1
$0.89
30
$0.865
75
$0.845
200
$0.825
400+
$0.785
