onsemi | FMB2227A

Manufacturer Part #

FMB2227A

FMB2227 Series NPN/PNP 500 mW 30 V 500 mA General Purpose Transistor - SSOT-6

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi FMB2227A - Technical Attributes
Attributes Table
Polarity: NPN/PNP
CE Voltage-Max: 30V
Collector Current Max: 500mA
Power Dissipation-Tot: 700mW

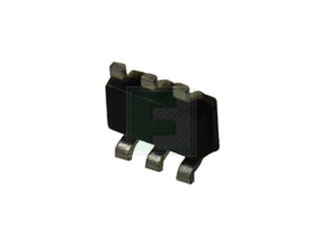

Package Style:  SSOT-6
Mounting Method: Surface Mount
Features & Applications

The FMB2227A is a part of FMB2227 series general purpose transistor. It has a storage temperature ranging from -55°C to +150°C and its available in SSOT-6 package.

Specifications:

  • Absolute Maximum Ratings:
    • Collector-Emitter Voltage: 30 V
    • Collector-Base Voltage: 60 V
    • Emitter-Base Voltage: 5 V
    • Collector Current-Continuous: 500 mA
  • Thermal Characteristics:
    • Total Device Dissipation: 700 mW
    • Thermal Resistance, Junction to Ambient: 180°C/W

Applications:

  • Military & Civil Aerospace
  • Home Audio System Components
  • Mobile Comm Infrastructure

View the complete family of general purpose transistor

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
51 Weeks
Minimum Order:
6000
Multiple Of:
3000
Total
$972.00
USD
Quantity
Unit Price
3,000
$0.164
6,000
$0.162
9,000
$0.161
12,000+
$0.159
