Abracon | ABM3B-16.384MHZ-B2-T

Manufacturer Part #

ABM3B-16.384MHZ-B2-T

ABM3B Series 16.384 MHz ±20 ppm 18 pF -20 to +70°C Surface Mount Ceramic Crystal

ECAD Model:
Mfr. Name: Abracon
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Abracon ABM3B-16.384MHZ-B2-T - Technical Attributes
Attributes Table
Load Capacitance: 18pF
Operating Frequency: 16.384MHz
Frequency Tolerance: ±20ppm
Operating Temp Range: -20°C to +70°C
ESR (Equivalent Series Resistance): 50Ω
Insulation Resistance: 500MΩ
Drive Level: 100µW
Aging (First Year): ±5ppm
Storage Temperature Range: -40°C to +85°C
Dimension: L  5mm x W  3.2mm
No of Pins: 4
Mounting Method: Surface Mount
Features & Applications

The ABM3B-16.384MHZ-B2-T is a highly reliable 16.384MHZ surface mount crystal with a load capacitance of 18PF and frequency tolerance of ±20ppm it can sustain a temperature ranging from -20°c to +70°c which comes in packaging of reel.

Features:

  • Available for fundamental mode and 3rd over tone mode (up to 125MHz)
  • Suitable for RoHS reflow
  • Available for tight stability
  • Seam sealed package assures high reliability

Applications:

  • Cellular telephones, Pagers
  • Communication and Test equipment
  • High Density applications
  • PCMCIA and wireless applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
18 Weeks
Minimum Order:
1000
Multiple Of:
1000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$385.00
USD
Quantity
Unit Price
1,000+
$0.385
Product Variant Information section
Related Products
ABM3B-12.288MHZ-B2-T
ABM3B-12.288MHZ-B2-T
Abracon
ABM3B Series 12.288 MHz ±20 ppm 18 pF -20 to +70°C Surface Mount Ceramic Crystal
As low as: $0.385 (USD)
ABM3-14.31818MHZ-B2-
ABM3-24.000MHZ-B2-T
Abracon
ABM3 Series 24 MHz ±20 ppm 18 pF -20 to +70 °C SMT Miniature Ceramic Crystal
As low as: $0.205 (USD)

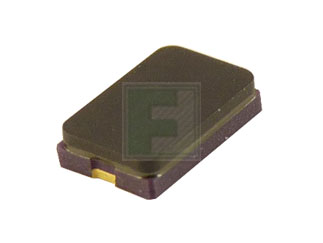

ABM3-14.31818MHZ-B2-T
