Manufacturer Part #
TL3780AF240QG

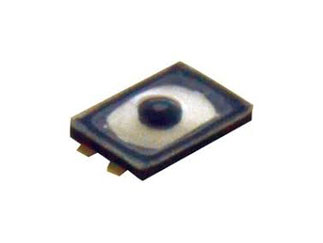

TL3780 Series 2 x 3 mm SPST 12 V 50 mA SMT Ultra Miniature Tactile Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:8500 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2503 | ||||||||||
Product Specification Section
E-Switch TL3780AF240QG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
E-Switch TL3780AF240QG - Technical Attributes
Attributes Table
| Switch Operation: | Off-Mom |
| Circuitry: | SPST |
| Voltage Rating: | 15V |
| Current Rating: | 0.02A |
| Insulation Resistance: | 50MΩ |
| Actuation Force: | 2.4N |
| Actuator Style: | Top Actuator |
| Termination Style: | Gull Wing |
| Dielectric Withstanding Voltage: | 250V |
| Operating Temperature: | -40°C to +85°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
17,000
USA:
17,000
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
8,500+
$0.118
Product Variant Information section
Available Packaging
Package Qty:
8500 per Reel
Mounting Method:
Surface Mount
