Manufacturer Part #

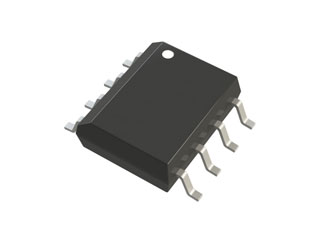

ACS714LLCTR-20A-T
Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Allegro MicroSystems | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2441 | ||||||||||
Product Specification Section
Allegro MicroSystems ACS714LLCTR-20A-T - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=ACS714LLCTR-20A-T&field4=Allegro MicroSystems&field18=https://p1emea.futureelectronics.com/p/4193539
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=ACS714LLCTR-20A-T&field4=Allegro MicroSystems&field18=https://p1emea.futureelectronics.com/p/4193539
Allegro MicroSystems ACS714LLCTR-20A-T - Technical Attributes
Attributes Table
| Type: | Linear Hall |
| Supply Voltage: | 4.5mV to 5.5V |
| Supply Current: | 13mA |
| Sensing Range: | ±20mT |
| Rise Time: | 5µs |
| Fall Time: | 5µs |
| Operating Temp Range: | -40°C to +150°C |
| Storage Temperature Range: | -65°C to +170°C |
| No of Terminals: | 8 |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
24 Weeks
Quantity
Unit Price
3,000+
$2.26
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOIC-8
Mounting Method:
Surface Mount
