Manufacturer Part #
180-015-213R031

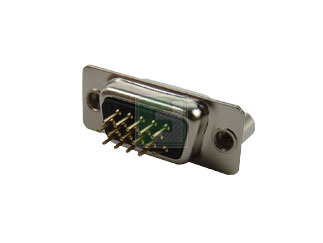

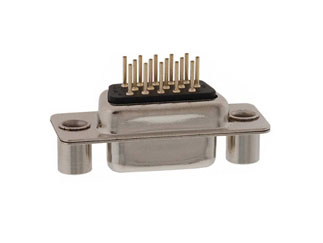

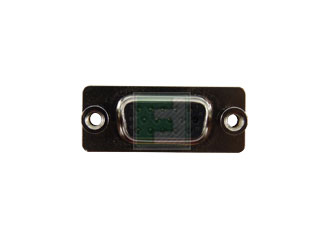

180 Series 15 Position Female Vertical High Density D-Sub- .236 Clinch Nut Front
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NorComp | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:80 per Tray Mounting Method:PCB Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
NorComp 180-015-213R031 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=180-015-213R031&field4=NorComp&field18=https://p1na.futureelectronics.com/p/4354049
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=180-015-213R031&field4=NorComp&field18=https://p1na.futureelectronics.com/p/4354049
NorComp 180-015-213R031 - Technical Attributes
Attributes Table
| Style/Orientation: | High Density Receptacle |
| No of Positions: | 15 |
| No of Rows: | 3 |
| Termination: | Female/Socket Solder |
| Pitch: | 2.29 mm |
| Material: | Front Metal |
| Shell Size: | 1 E |
| Gender: | Female |
| Current Rating: | 5A |
| Contact Plating: | Gold |
| Insulation Resistance: | 1000MΩ |
| Operating Temperature: | -50°C to +100°C |
| Mounting Method: | PCB Mount |
Features & Applications
The 180-015-213R031 is a part of 180 Series 15 Position Female Vertical Dip solder High density D-Sub Connectors
Features:
- Available in 5 industry sizes/positions (15, 26, 44, 62, 78)
- Approximately 65% higher density than standard D-Sub connectors
- Low cost / high performance stamped contacts
- Metal shell provides EMI/RFI shielding
- Plug shells have indents to provide grounding and additional retention
- Connectors will fit in standard D-Sub backshells
Materials:
- Shell: Steel, Nickel Plated
- Insulator: Glass-filled thermoplastic, U.L. rated 94V-O
- process temp: 260°C
- Contacts:
- Male pins - Brass
- Female pins - Phosphor bronze
- Plating: Gold flash on entire contact
Applications:
- Industrial
- Data communication
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$3.02
20
$2.95
50
$2.92
125
$2.88
300+
$2.80
Product Variant Information section
Available Packaging
Package Qty:
80 per Tray
Mounting Method:
PCB Mount
